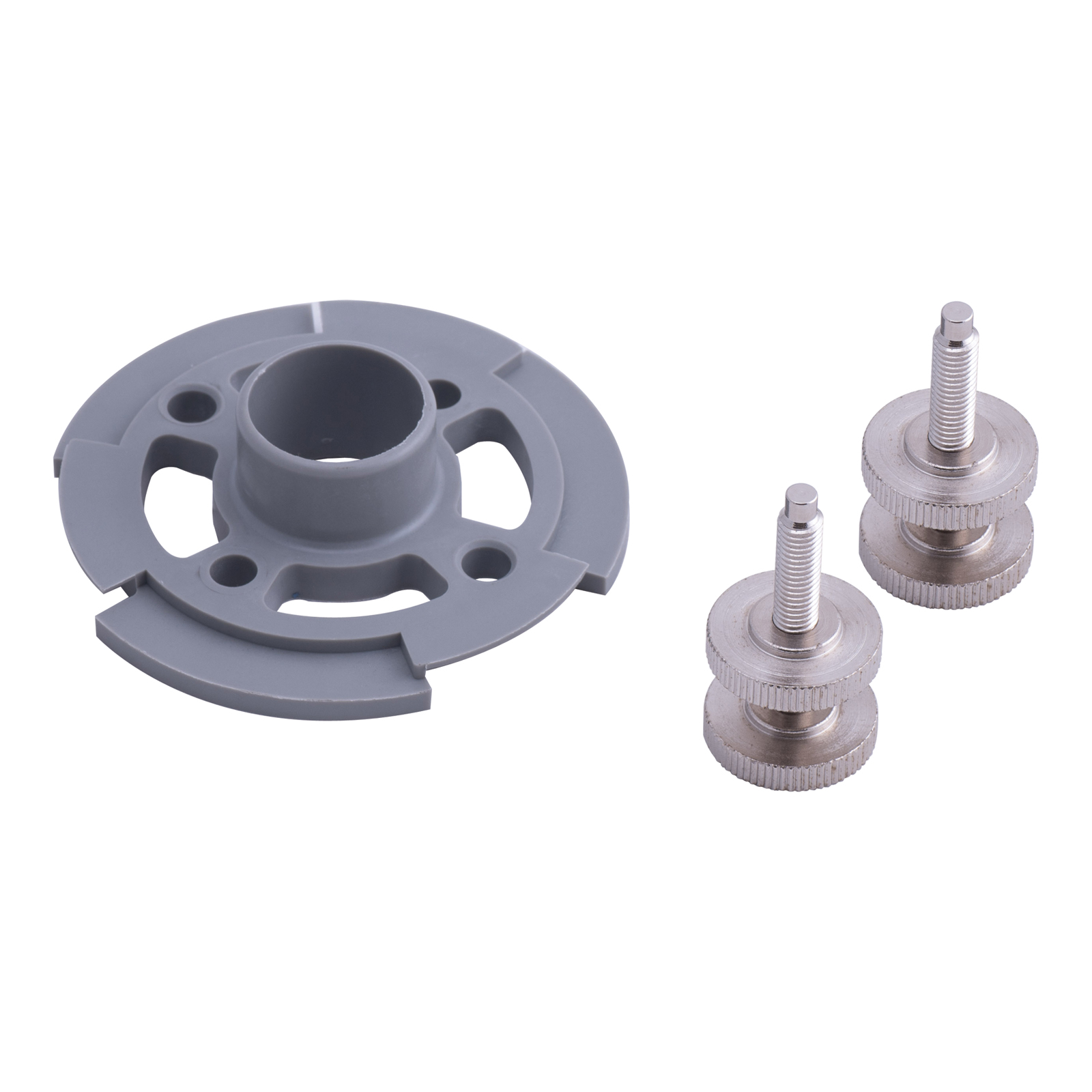

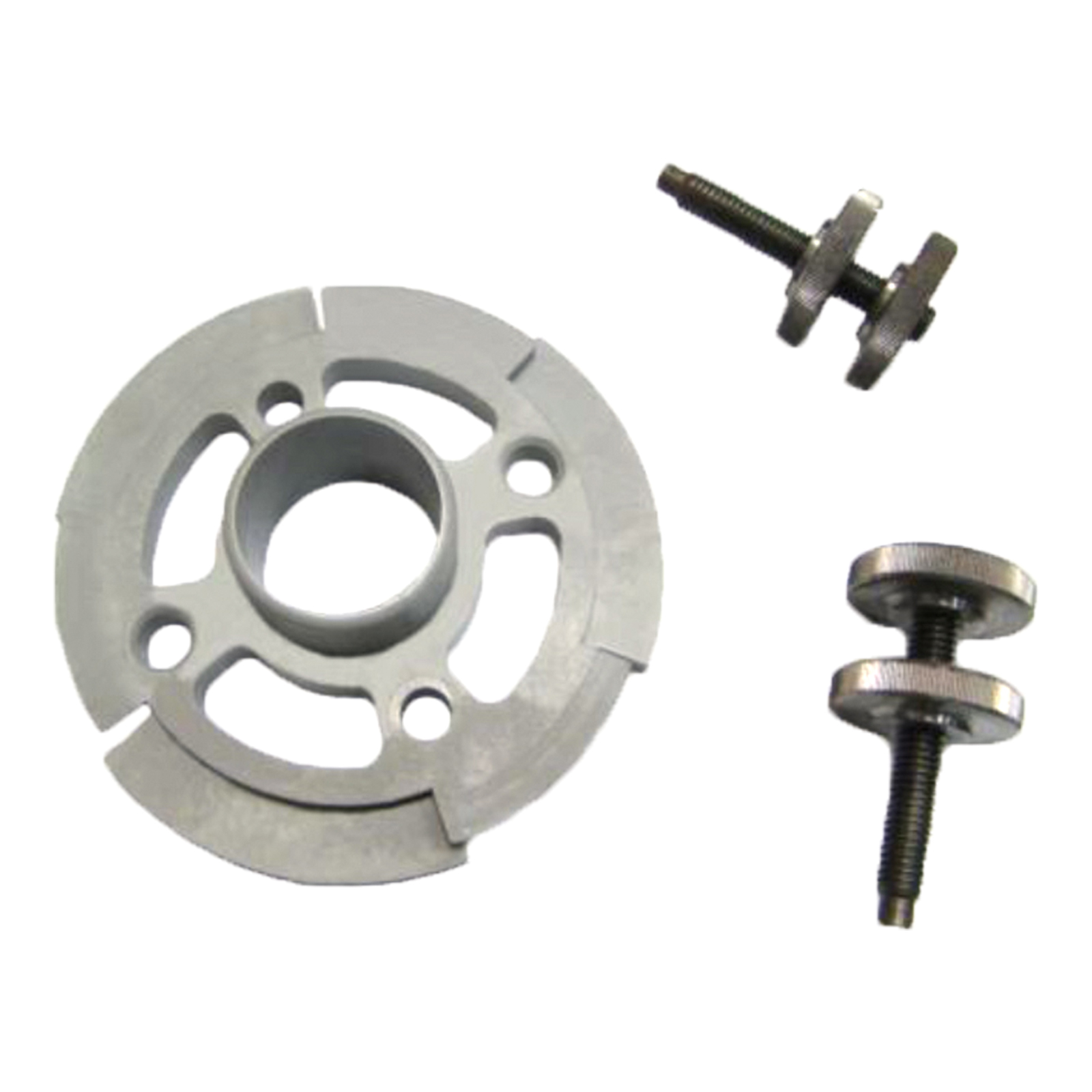

Ford Fuel Injection Pump Sprocket Locking Tool

2.2L | 3.2L Duratorq
SKU: ET1512

Automotive


Specialised locking tool for Ford Transit (2.2L) and Ford Ranger (3.2L) Puma engines. Allows for the removal of the chain driven high pressure diesel fuel pump while maintaining engine timing / timing chain position.

Use with ET1311 and ET9161.

  • OEM Equiv: 303-1317

Engine Code(s)

P4AT, P5AT, QVFA, SRFA, CVRC, CYFB, CYFD, UHFA, UHFB, CYF4, CYFA, CVR5

Vehicle Make Model Series Engine Code Engine Size Year Start Year End
FordTransitVMCVR52.2L2014
FordTransitVOCVR52.2L2014
FordTransitVMCVRC2.2L20112014
FordTransitVOCVRC2.2L2014
FordTransitVNCYF42.2L2013
FordTransitVNCYFA2.2L2013
FordTransitVMCYFB2.2L20122014
FordTransitVMCYFD2.2L2012
FordRangerPXP4AT2.2L20112015
MazdaBT-50URP4AT2.2L2011
FordEverestUAP5AT3.2L2015
FordRangerPXP5AT3.2L2011
MazdaBT50URP5AT3.2L20152016
MazdaBT50UPP5AT3.2L20112015
FordTransitVMQVFA2.2L20062010
FordTransitVMSRFA2.2L20102012
FordTransitVMUHFA2.2L20122014
FordTransitVMUHFB2.2L20122014

303-1317

Promo
Ford High Pressure Pump Tools Ford High Pressure Pump Tools

Ford High Pressure Pump Tools

Essential tools for allowing the removal of the chain driven high pressure diesel fuel pump, while maintaining the engine timing and chain position.

Designed to be used with the ET9161 to remove the sprocket cover.

  • Kit comprises ET1311 / ET1512

Ranger | Transit Timing Kit

Ranger | Transit Timing Kit

Comprehensive kit for timing on popular Ford Ranger / Transit vehicles. This kit includes both timing tools, as well as tools for replacing the high pressure fuel pump.

  • Kit contains ET0306 | ET1311 | ET1512

Engine Code(s)

P4AT, P5AT, QVFA, SRFA, CVRC, CYFB, CYFD, UHFA, UHFB, CYF4, CYFA, CVR5

Vehicle Make Model Series Engine Code Engine Size Year Start Year End
FordTransitVMCVR52.2L2014
FordTransitVOCVR52.2L2014
FordTransitVMCVRC2.2L20112014
FordTransitVOCVRC2.2L2014
FordTransitVNCYF42.2L2013
FordTransitVNCYFA2.2L2013
FordTransitVMCYFB2.2L20122014
FordTransitVMCYFD2.2L2012
FordRangerPXP4AT2.2L20112015
MazdaBT-50URP4AT2.2L2011
FordEverestUAP5AT3.2L2015
FordRangerPXP5AT3.2L2011
MazdaBT50URP5AT3.2L20152016
MazdaBT50UPP5AT3.2L20112015
FordTransitVMQVFA2.2L20062010
FordTransitVMSRFA2.2L20102012
FordTransitVMUHFA2.2L20122014
FordTransitVMUHFB2.2L20122014
SKU ET1512
Barcode # 9321280371569
Brand Automotive
Product weight 0.2600kg
Shipping weight 0.310000kg
Vehicle Make Ford
Vehicle Make Mazda

12 Months
