This product is designed for use in monitoring car battery voltage, leakage current, and serving as a backup power supply when replacing the battery. The product is connected to the car's OBDII interface via an OBDII connection cable to supply 12V power to the car and monitor the car system's leakage current for diagnosing various faults. It can also serve as a backup power supply for the car during battery replacement, preventing the car's mainboard from losing power and data. Draw Monitor can also monitor battery voltage through the OBDII port. Please read the instruction manual carefully before using the product.

• Supplies up to 10 amps
• Connects via OBDII
• View and record data via Bluetooth on App
• USB-C rechargeable
• Adjustable current output alarm & adjustable auto power off setting
• Graphing mode
• Monitor function input: 0-30V
• Voltage display accuracy: 1%+5dig resolution 0.1V
• Current display accuracy: 3%+5dig resolution 1mA

Silvertronic multimeter leads are made in the UK. Designed for professional use, Silvertronic silicone leads are double insulated.

Silicone leads can withstand high temperature, including the heat of such things as hot manifolds and soldering iron tips.

• 1000V CAT III 20A
• 2m long cables (colour coded)
• Extra thin 0.7mm OD
• Supplied in a 4 pocket test lead organiser for convenient storage.

The Power Probe Temperature Kit is designed to give readings for ambient temperature and from the wireless Temperature Probe.

The Tempkit has a built-in temperature sensor in the base unit, plus a temperature sensor in the remote wireless Probe. This allows for multiple readings simultaneously.

One additional wireless Temperature Probe (TEMPPROBE) is available separately, for a second temperature reading.

• Measuring Range: -22°C to 70°C
• Wireless Transmitter Distance: 5m (16.5 Feet)
• Accuracy ±2.0°F(±2.0°C)
• Backlit LCD Display
• Requires 2x AA and 2x AAA Batteries (NOT INCLUDED)

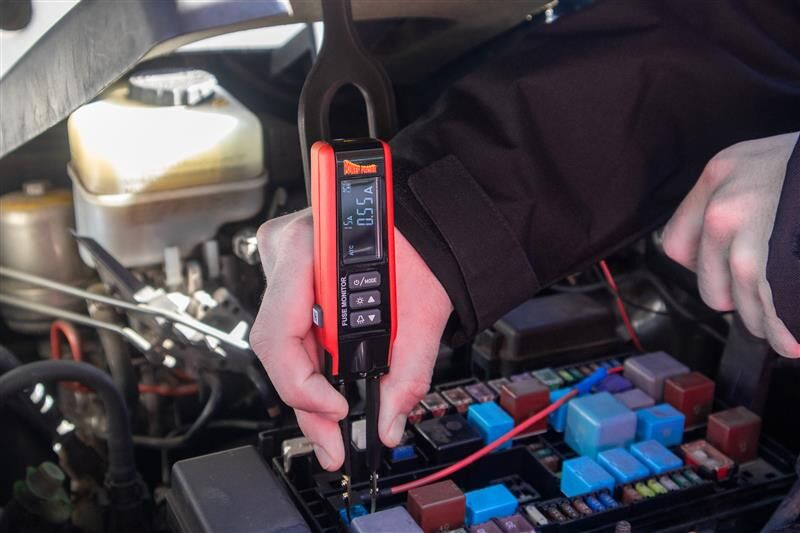

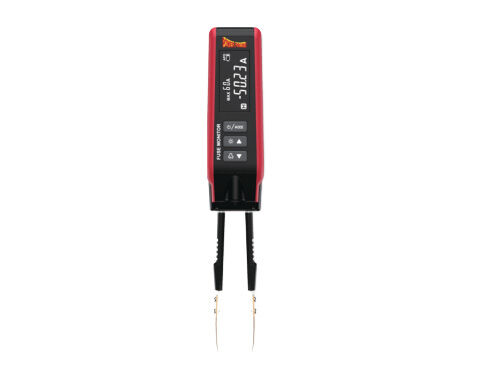

PPDRAW + PPFUSE Combo Pack - Diagnose Smarter, Save More Take full control of automotive diagnostics with this powerful pairing. The PPDRAW Draw Monitor connects via OBDII to supply 12V power, monitor battery voltage, and detect leakage currentÑplus it backs up vehicle memory during battery replacement. Pair it with the PPFUSE Fuse Monitor to track down parasitic draws across circuits with real-time amp readings, no fuse removal required.

Together, they offer unmatched accuracy, convenience, and mobilityÑeverything you need to monitor, diagnose, and repair electrical issues fast. Save by bundling both tools and streamline your diagnostic game .

The Power Probe PP3EZKIT is an all-in-one automotive diagnostic kit designed to streamline fault-finding and component testing. It allows you to power up and activate components directly, trace wiring and circuit faults with precision, and expand troubleshooting capability using advanced probe tips and accessories. Ideal for fast, accurate electrical diagnostics across modern vehicle systems.

• Quickly Locate Short and Open Circuits - pinpoint wiring faults with speed and precision, drastically reducing diagnostic time.
• Complete Diagnostic Kit - Includes both the PP3EZ Power Probe for activating and testing circuits and the ECT3000 Circuit Tracer for fault finding in hard to reach wiring, providing a comprehensive all in one testing solution.
• Activate Components with Power or Ground - apply power or ground directly to components, enabling instant functional checks without back probing or jumper wires.
• Includes Tip Adapters - two essential adapters for current measurement (PPAMP) and PWM signal testing (PPPWM), expanding diagnostic capability for modern automotive systems.


The Power Probe 3 with PowerFlowª Technology is built for technicians who need faster, more confident electrical diagnostics on 12V and 24V vehicle systems. It combines the trusted functionality of the Power Probe 3 with advanced circuit-loading capability, allowing technicians to measure voltage, apply battery power or ground, check resistance, activate components, and verify circuit integrity under real-world load conditions. With PowerFlowª, hidden faults such as high resistance, corrosion, weak grounds, and excessive voltage drop can be exposed quickly Ñ helping reduce guesswork, avoid unnecessary parts replacement, and speed up every diagnostic job.

• PowerFlowª Circuit Loading Technology - Actively load positive or negative circuits to test wiring under real operating conditions. PowerFlowª helps reveal voltage drop, high resistance, weak grounds, corrosion, damaged wiring, and poor connections that may not appear during standard no-load voltage testing.
• Apply Battery Power or Ground - Quickly supply 12V or 24V battery power or ground directly to components for fast functional testing. Ideal for checking motors, lights, relays and other electrical components.
• Resistance Measurement up to 25 k - Measure resistance to help verify component specifications, identify poor connections, and locate high-resistance faults caused by corrosion, damaged wiring, or component degradation.
• 10A Solid-State Circuit Breaker - The integrated 10-amp solid-state circuit breaker provides protection while supporting higher-load component testing. It allows technicians to power demanding loads with added confidence and automatic reset protection.
• Built-In Electronic Latch Function - Apply continuous power or ground without holding the actuator switch. This is especially useful for extended component activation, dynamic troubleshooting, and hands free testing.
• Quick-Connect Ground Lead - The ground connection uses a 4mm banana jack for improved flexibility and reliability. It allows the use of extensions, adapters, and test leads while maintaining a secure ground connection.

The original Power Probe 3 uses a 20ft cable which attaches to the vehicle's battery, allowing the user to perform an electrical test anywhere in, or around the vehicle. The PP3 is a Voltmeter and Continuity Tester, with Audible & Visual indicators along with two LED headlights to light up your work area. This circuit tester also supplies Battery Voltage or Ground to activate components. This powerful time-saver tool is perfect for every level of technician.

• Voltmeter and Continuity Tester
• Relay & component tester
• Supply battery voltage and ground to test components
• Audio tone 20' Jumper lead
• Works on 12-24V sources
• Protected by 8 Amp circuit breaker

The Power Probe 3 with PowerFlowª Technology is built for technicians who need faster, more confident electrical diagnostics on 12V and 24V vehicle systems. It combines the trusted functionality of the Power Probe 3 with advanced circuit-loading capability, allowing technicians to measure voltage, apply battery power or ground, check resistance, activate components, and verify circuit integrity under real-world load conditions. With PowerFlowª, hidden faults such as high resistance, corrosion, weak grounds, and excessive voltage drop can be exposed quickly Ñ helping reduce guesswork, avoid unnecessary parts replacement, and speed up every diagnostic job.

• PowerFlowª Circuit Loading Technology - Actively load positive or negative circuits to test wiring under real operating conditions. PowerFlowª helps reveal voltage drop, high resistance, weak grounds, corrosion, damaged wiring, and poor connections that may not appear during standard no-load voltage testing.
• Apply Battery Power or Ground - Quickly supply 12V or 24V battery power or ground directly to components for fast functional testing. Ideal for checking motors, lights, relays and other electrical components.
• Resistance Measurement up to 25 k - Measure resistance to help verify component specifications, identify poor connections, and locate high-resistance faults caused by corrosion, damaged wiring, or component degradation.
• 10A Solid-State Circuit Breaker - The integrated 10-amp solid-state circuit breaker provides protection while supporting higher-load component testing. It allows technicians to power demanding loads with added confidence and automatic reset protection.
• Built-In Electronic Latch Function - Apply continuous power or ground without holding the actuator switch. This is especially useful for extended component activation, dynamic troubleshooting, and hands free testing.
• Quick-Connect Ground Lead - The ground connection uses a 4mm banana jack for improved flexibility and reliability. It allows the use of extensions, adapters, and test leads while maintaining a secure ground connection.

Perform battery checks, charging system checks, fuse checks, voltage checks, component tests...

All at the flick of the switch, while being guided through with our two NEW menu options: EZLEARNING and EZDIAGNOSTIC.

• New larger LCD screen
• Upside down? No problem! New flip screen feature
• Menu driven. Makes navigating a breeze
• Limited edition carbon fibre skin

The Power Probe PP3EZ includes all the powerful testing modes and features of the Power Probe III plus now includes 2 new modes - EZ Learning Mode and EZ Diagnostics Mode. The PP3EZ speeds you through the diagnosing of 12 to 24 volt automotive electrical systems. After connecting the PP3EZ's clips to the vehicle's battery, the automotive technician can determine at a glance, the voltage level and the polarity of a circuit without running for a voltmeter or reconnecting hook-up clips from one battery pole to the other. The power switch allows the automotive technician to conduct a positive or negative battery current to the tip for activating and testing the function of electrical components without wasting time with jumper leads.

• New larger LCD screen
• Upside down? No problem! New flip screen feature
• Menu driven. Makes navigating a breeze

The Power Probe PP3EZKIT is an all-in-one automotive diagnostic kit designed to streamline fault-finding and component testing. It allows you to power up and activate components directly, trace wiring and circuit faults with precision, and expand troubleshooting capability using advanced probe tips and accessories. Ideal for fast, accurate electrical diagnostics across modern vehicle systems.

• Quickly Locate Short and Open Circuits - pinpoint wiring faults with speed and precision, drastically reducing diagnostic time.
• Complete Diagnostic Kit - Includes both the PP3EZ Power Probe for activating and testing circuits and the ECT3000 Circuit Tracer for fault finding in hard to reach wiring, providing a comprehensive all in one testing solution.
• Activate Components with Power or Ground - apply power or ground directly to components, enabling instant functional checks without back probing or jumper wires.
• Includes Tip Adapters - two essential adapters for current measurement (PPAMP) and PWM signal testing (PPPWM), expanding diagnostic capability for modern automotive systems.


The Power Probe 4 is a multi-use Circuit Tester with built-in diagnostic power.

This tool simplifies the testing of fuse boxes, verifies correct operation of motors, lights, relays, sensors, wires, communications circuits and computer drivers. The large LCD colour display makes viewing live test information and mode selection simplified in even direct sunlight or complete darkness.

• Supplies Power and Ground
• Digital voltmeter with Min/Max voltage capturing
• 20 ft power lead
• Tests for bad grounds / short circuits
• Powered by vehicle battery
• Gold plated brass probe tip
• Directed LED head lamps to illuminate test area
• Ohmeter / Frequency
• Pulse width (+tive & -tive)

Additional diagnostic modes:

• Petrol fuel injection tester
• PCM / ECM driver tester
• Signal tracer (use with ECT3000)
