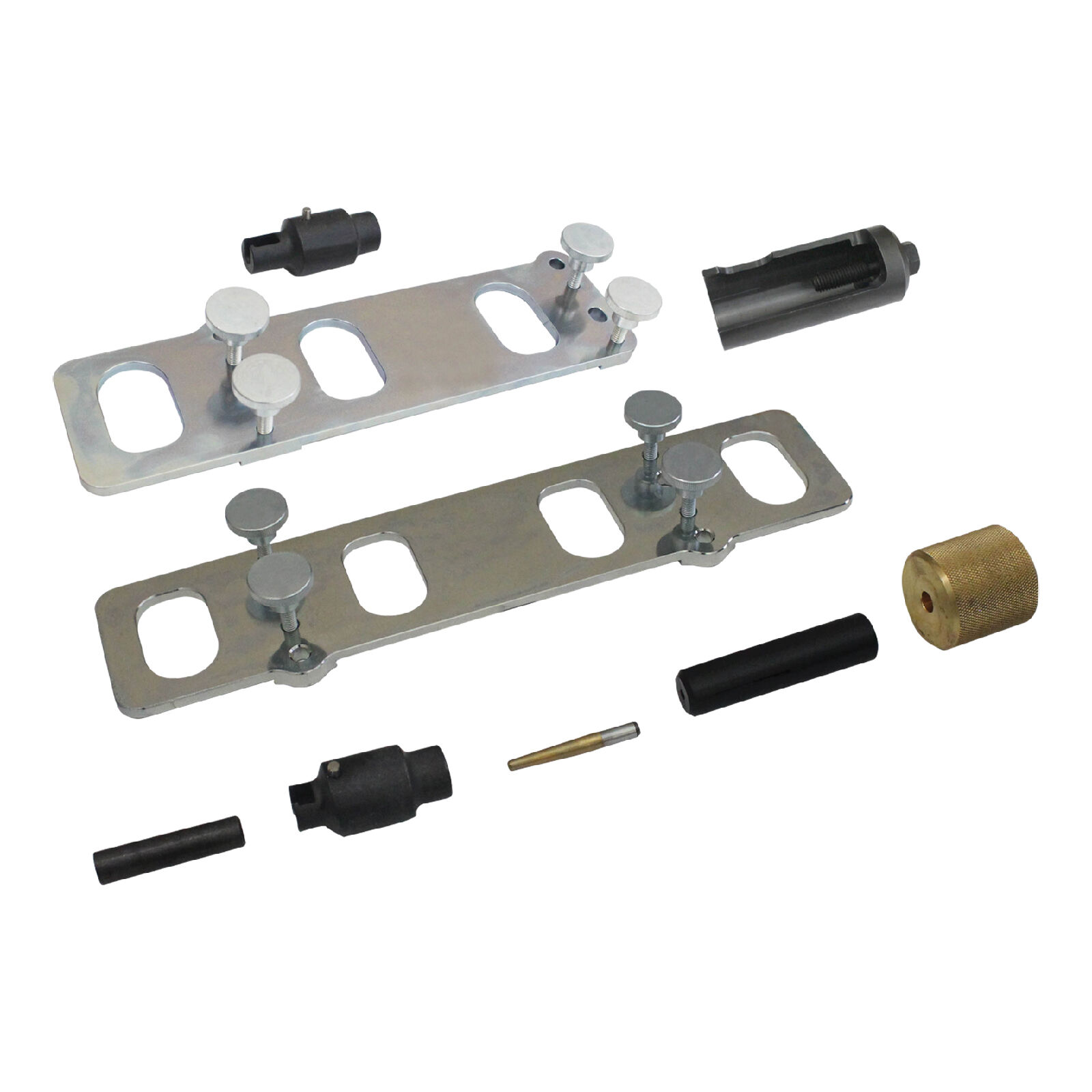

A master injector removal kit for both 3 cylinder and 4 cylinder EA 211 engines. This kit is essential for the removal of the injectors, as well as for the assembly of the combustion chamber seal on the injector.
This kit also includes an injector brush tool to ensure clean and reliable seating of fuel injectors (for engines using direct fuel injection systems).
- Applications: 1.5L 4V EA 211 EVO turbo charger
- OEM Equiv: T10581 | T10133/16A | T10629
Engine Code(s)
CHYB, CHZD, CHZB, CHZC, CHZJ, CJZC, CJZD, CHPA, CZCA, CMBA, DADA, DPCA, CJZD
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Skoda | Octavia | NE | CHPA | 1.4L | 2013 | 2015 |
| Volkswagen | Golf | MK7 | CHPA | 1.4L | 2012 | 2015 |
| Volkswagen | Up! | AA | CHYB | 1.0L | 2012 | 2014 |
| Skoda | Citigo | AA | CHYB | 1.0L | 2013 | 2014 |
| Skoda | Fabia | NJ | CHYB | 1.0L | 2018 | 2021 |
| Audi | A1 | 8X | CHZB | 1.0L | 2015 | 2019 |
| Skoda | Fabio | NJ | CHZB | 1.0L | 2017 | |
| Skoda | Rapid | NH | CHZB | 1..0L | 2018 | |
| Skoda | Fabia | NJ | CHZC | 1.0L | 2017 | 2021 |
| Audi | A3 | 8V | CHZD | 1.0L | 2016 | 2020 |
| Volkswagen | Polo | AW | CHZJ | 1.0L | 2017 | 2021 |
| Skoda | Fabia | NJ | CJZC | 1.2L | 2015 | 2017 |
| Volkswagen | Polo | MK5 | CJZC | 1.2L | 2014 | 2018 |
| Skoda | Rapid | NH | CJZC | 1.2L | 2015 | 2019 |
| Skoda | Fabia | Typ NJ | CJZD | 1.2L | 2015 | 2017 |
| Skoda | Rapid | Typ NH | CJZD | 1.2L | 2015 | 2017 |
| Volkswagen | Polo | 6C | CJZD | 1.2L | 2014 | 2018 |
| Audi | A3 | 8V | CMBA | 1.4L | 2013 | 2014 |
| Volkswagen | Golf | MK7 | CMBA | 1.4L | 2012 | 2015 |
| Audi | A1 | 8X | CZCA | 1.4L | 2015 | 2019 |
| Audi | A3 | 8V | CZCA | 1.4L | 2014 | 2016 |
| Skoda | Rapid | NH | CZCA | 1.4L | 2015 | 2020 |
| Skoda | Yeti | 5L | CZCA | 1.4L | 2015 | 2017 |
| Volkswagen | Golf | MK7 | CZCA | 1.4L | 2015 | 2021 |
| Audi | A1 | GB | DADA | 1.5L | 2019 | |
| Skoda | Kamiq | NW | DADA | 1.5L | 2020 | |
| Skoda | Karoq | NU | DADA | 1.5L | 2017 | 2020 |
| Volkswagen | T-Cross | C1 | DADA | 1.5L | 2020 | |
| Volkswagen | T-Roc | A11 | DADA | 1.5L | 2020 | |
| Skoda | Kodiaq | NS | DADA | 1.5L | 2019 | 2024 |
| Audi | A1 | GB | DPCA | 1.5L | 2019 | |
| Audi | Q2 | GA | DPCA | 1.5L | 2021 | 2024 |
| Cupra | Formentor | KM | DPCA | 1.5L | 2022 | |
| Skoda | Kamiq | NW | DPCA | 1.5L | 2022 | |
| Skoda | Kodiaq | NS | DPCA | 1.5L | 2019 | 2024 |
| Skoda | Scala | NW | DPCA | 1.5L | 2020 |
T10581
T10133/16A
T10629
| SKU | ET6405E |
| Barcode # | 9321280429888 |
| Brand | Automotive |
| Product weight | 2.4000kg |
| Shipping weight | 2.400000kg |
| Vehicle Make | VAG |
12 Months
