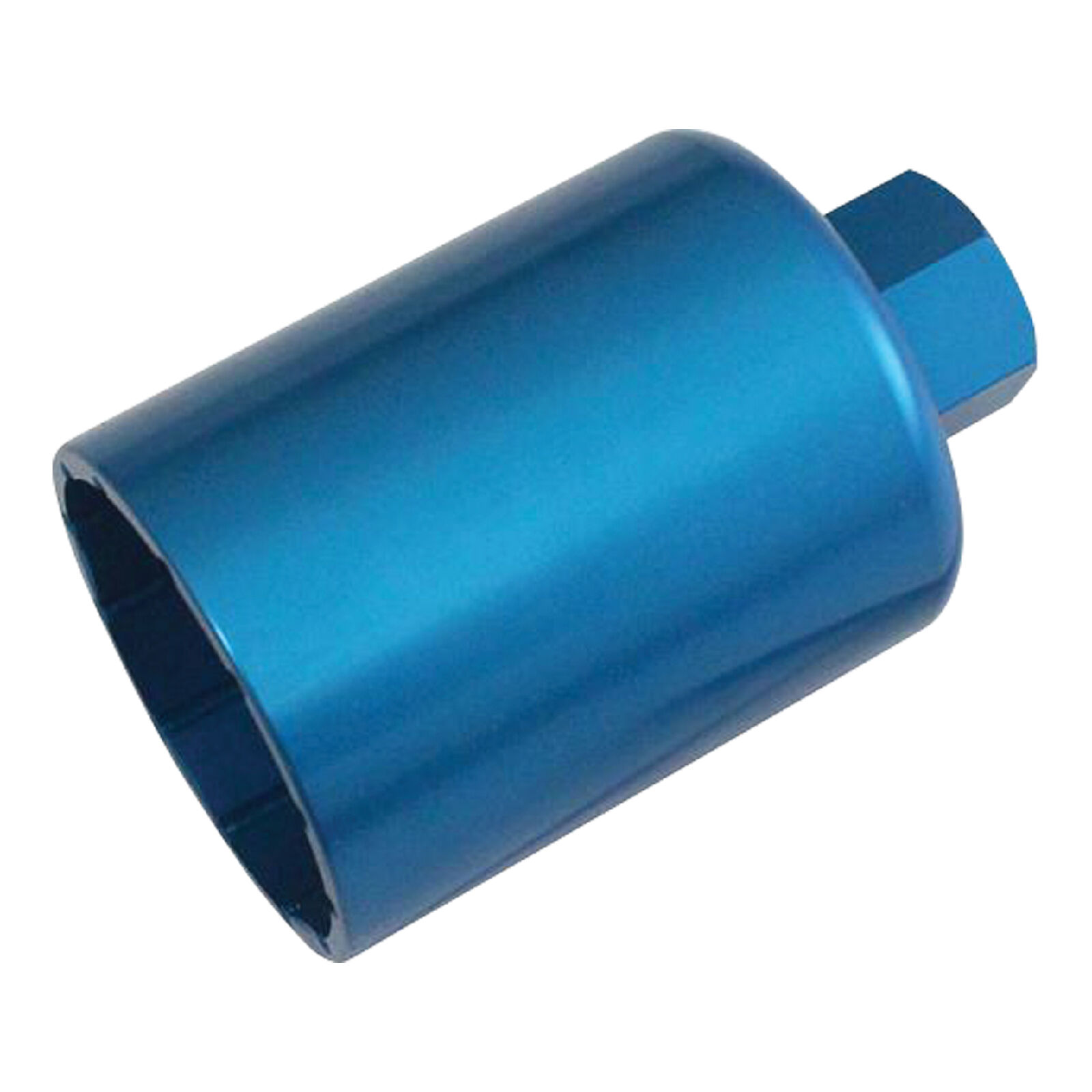

This nozzle valve socket is specifically designed for OM654 diesel engines, to allow for the safe removal / installation of injector nozzle valves without damaging surrounding components.
- Engine code: OM654
- OEM equiv: W654589000900
Engine Code(s)
OM654.920
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Mercedes | C220d | W205 | OM654.920 | 2.0L | 2018 | 2019 |
| Mercedes | E220d | W213 | OM654.920 | 2.0L | 2016 | 2019 |
| Mercedes | E220d | S213 | OM654.920 | 2.0L | 2016 | 2020 |
| Mercedes | E220d | C238 | OM654.920 | 2.0L | 2017 | 2019 |
| Mercedes | GLE300d | V167 | OM654.920 | 2.0L | 2019 | 2019 |
| Mercedes | Sprinter | 517CDI | OM654.920 | 2.0L | 2022 | |
| Mercedes | Sprinter | 417CDI | OM654.920 | 2.0L | 2022 | |
| Mercedes | Sprinter | 317CDI | OM654.920 | 2.0L | 2022 |
W654589000900
| SKU | ET6377A |
| Barcode # | 9321280430433 |
| Brand | Automotive |
| Product weight | 1.2600kg |
| Shipping weight | 1.260000kg |
| Vehicle Make | Mercedes |
12 Months
