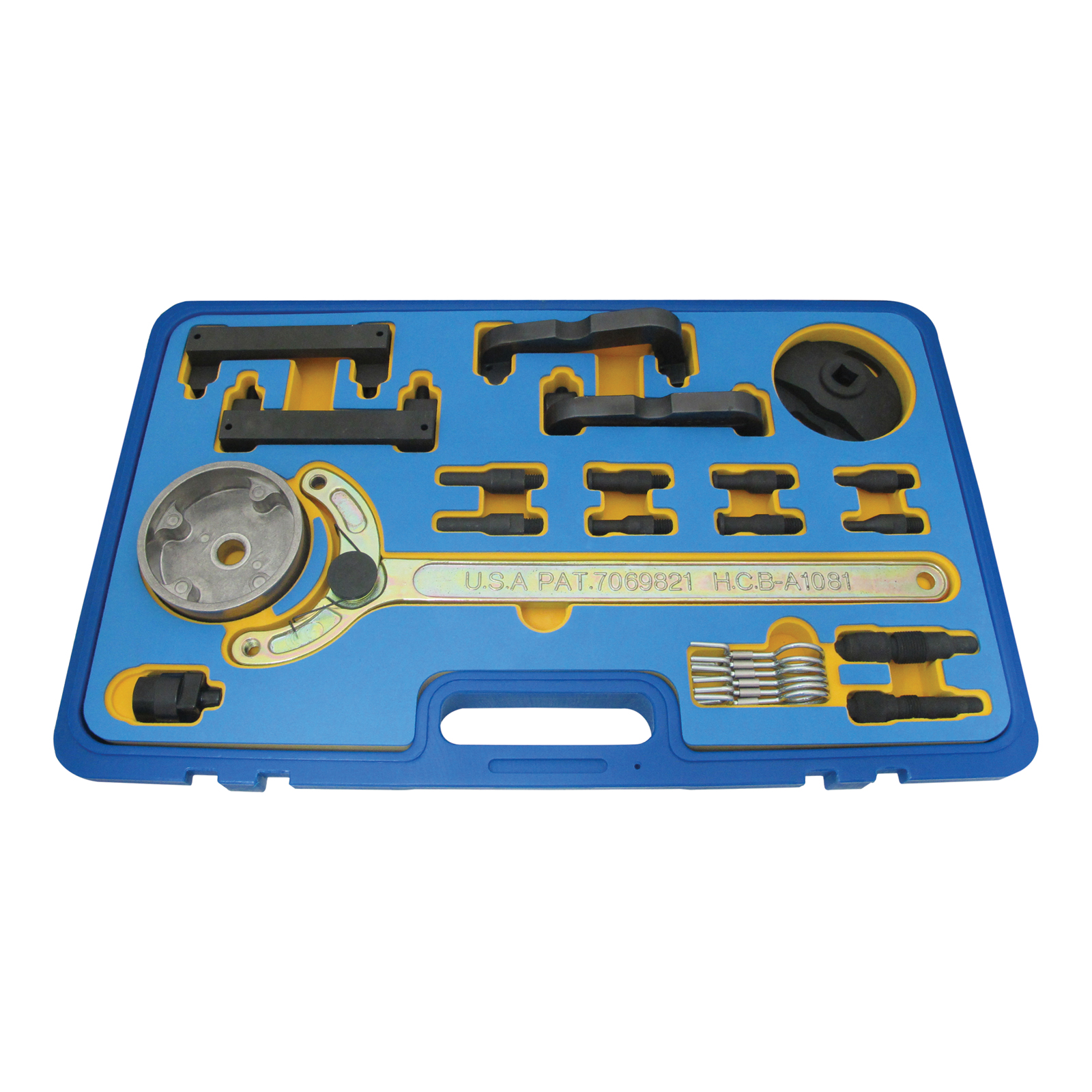

A timing tool kit for the latest chain driven FSI engines. Suits a wide range of V6 | V8 | V10 petrol engines.
- OEM Equiv: T20018 | T40133 | T40069 | T40070 | T40071 | T40079 | 3242 | T40058 | T40049
- Applications: VAG 2.5L | 3.2L FSI
| SKU | Description | OEM Equivalent Codes |
|---|---|---|
| ET1519A |
VAG 3.2L V6 | 4.2L V8 Crankshaft Turning Tool |
T40049 |
| ET1105-4 |
VAG Crankshaft TDC Locking Screw |
3242 T30052 T40237 |
| ET1105A-6 |
VAG Crankshaft Locking Screw |
T40069 |
| ET1425A |
VAG Crankshaft Rotation Socket (Pulley End) |
T40058 |
| ET1471A |
VAG 2.8L 4V Cam Holding Tool |
T40133 |
| TT0070 |
Camshaft Locking Tool |
T40070 |
| TT0071 |
Tensioner Locking Pin |
T40071 |
| TT0079 |
Camshaft Adjuster Key |
T40079 |
Engine Code(s)
BDX, CALA, CALB, CCAA, CGWB, CGWD, CHVA
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Audi | A6 | C6 | BDX | 2.8L | 2007 | 2009 |
| Audi | A5 | CALA | 3.2L | 2009 | ||
| VAG | CALA | 3.2L | ||||
| Audi | Q5 | CALB | 3.2L | 2009 | ||
| Audi | A6 | CCAA | 3.0L | 2009 | ||
| Audi | A6 | C7 | CGWB | 3.0L | 2011 | 2013 |
| Audi | A7 | 4G | CGWB | 3.0L | 2011 | 2015 |
| Audi | A6 | C7 | CGWD | 3.0L | 2013 | 2015 |
| Audi | A8 | D4 | CGWD | 3.0L | 2011 | 2014 |
| Audi | A6 | C7 | CHVA | 2.8L | 2011 | 2015 |
| SKU | ET1522A |
| Barcode # | 9321280369320 |
| Brand | Automotive |
| Product weight | 6.0000kg |
| Shipping weight | 6.000000kg |
| Vehicle Make | VAG |
12 Months
