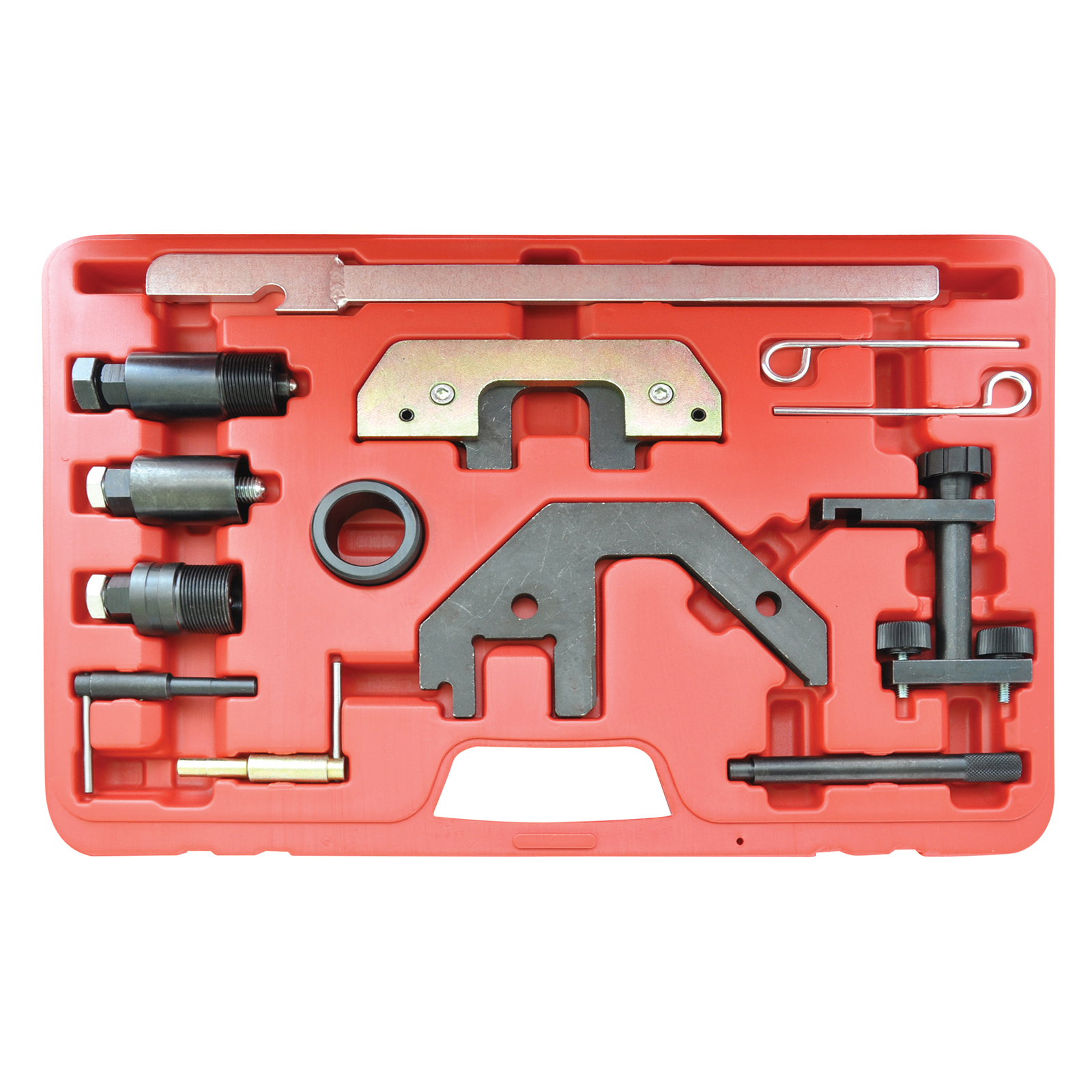

For 2.0 DOHC 16v | 3.0L DOHC 24v (98-) engines. Used for checking and adjusting timing plus removal and installation of camshaft / variable camshaft timing unit. ALSO suits certain Holden | Land Rover | Rover & MG vehicles.
OEM Equivalents & Engine Codes:
- ET1020A: BMW 11 2 300, Holden KM 813, Land Rover LRT 12-108
- ET1388: BMW 13 5 120, Land Rover LRT 12-119, Holden KM 825
- TT3320: BMW 11 3 320, Holden KM 811, Land Rover LRT 12-112
- TT6322: BMW 11 6 322, Land Rover LRT12-173
- TT6320: BMW 11 6 320
- TT3340: BMW 11 3 340, Land Rover LRT 12-172
- TT5180: BMW 11 5 180, Land Rover 12-227
- TT6080: BMW 11 6 080
- TT3360: BMW 11 3 360, Land Rover LRT 12-115, Holden KM 822
- TT5190: BMW 13 5 190
- TT5120: BMW 13 5 120
- TT5191: BMW 13 5 191
- TT5192: BMW 13 5 192
- M47 | M47TU | M51 | M57 | M57TU
| SKU | Description | OEM Equivalent Codes |
|---|---|---|
| ET1020A |
BMW Crankshaft Alignment Pin |
11 2 300 KM 813 LRT 12-108 |
| TT6322 |
Camshaft Alignment Pin |
11 6 322 LRT12-173 |
| TT3340 |
Tensioner Locking Pins |
11 3 340 LRT 12-172 |
| TT5180 |
Flywheel Locking Pin |
11 5 180 12-227 |
| TT6080 |
Flywheel Locking Pin |
11 6 080 |
| TT3320 |
Camshaft Alignment Tool |
11 3 320 KM 811 LRT 12-112 |
| TT3360 |
Timing Chain Compressor |
11 3 360 LRT 12-115 KM 822 |
| ET1388 |
JLR 2.5 TDS Injection Pump Puller |
13 5 120 LRT 12-119 KM 825 |
| TT6320 |
Camshaft Alignment Tool Clamp Assembly |
11 6 320 |
| TT5190 |
BMW Injection Pump Extractor |
13 5 190 |
| TT5191 |
Injection Pump Puller |
13 5 191 |
| TT5192 |
Injection Pump Shaft Tool |
13 5 192 |
Engine Code(s)
M51D25, M47D20, M57D25, M57D30, M57TUD30, M57TU2D30, M47TUD20
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| BMW | 320D | E46 | M47D20 | 2.0L | 1999 | 2005 |
| BMW | 320D | E91 | M47D20 | 2.0L | 2004 | 2007 |
| BMW | 320D | E90 | M47D20 | 2.0L | 2004 | 2007 |
| BMW | 520D | E60 | M47D20 | 2.0L | 2005 | 2007 |
| Land Rover | Freelander | M47D20 | 2.0L | 2000 | 2007 | |
| BMW | 118D | E87 | M47TUD20 | 2.0L | 2004 | 2007 |
| BMW | 120D | E87 | M47TUD20 | 2.0L | 2006 | 2007 |
| BMW | X3 | E83 | M47TUD20 | 2.0L | 2003 | 2006 |
| Land Rover | Range Rover | M51D25 | 2.5L | 1994 | 2002 | |
| BMW | 525D | E60 | M57D25 | 2.5L | 2003 | 2007 |
| BMW | 325D | E90 | M57D30 | 3.0L | 2008 | 2010 |
| BMW | 330D | E46 | M57D30 | 3.0L | 1999 | 2001 |
| BMW | 330D | E46 | M57D30 | 3.0L | 2002 | 2005 |
| BMW | 330D | E90 | M57D30 | 3.0L | 2004 | 2008 |
| BMW | 330D | E91 | M57D30 | 3.0L | 2005 | 2008 |
| BMW | 335D | E90 | M57D30 | 3.0L | 2005 | 2010 |
| BMW | 525D | E61 | M57D30 | 3.0L | 2005 | 2010 |
| BMW | 525D | E60 | M57D30 | 3.0L | 2006 | 2009 |
| BMW | 530D | E39 | M57D30 | 3.0L | 1998 | 2003 |
| BMW | 530D | E60 | M57D30 | 3.0L | 2008 | 2010 |
| BMW | 535D | E60 | M57D30 | 3.0L | 2004 | 2009 |
| BMW | 535D | E61 | M57D30 | 3.0L | 2004 | 2010 |
| BMW | 730D | E65 | M57D30 | 3.0L | 2004 | 2008 |
| BMW | X5 | E53 | M57D30 | 3.0L | 2000 | 2003 |
| BMW | 730LD | E66 | M57TU2D30 | 3.0L | 2005 | 2008 |
| BMW | X3 | E83 | M57TU2D30 | 3.0L | 2006 | 2010 |
| BMW | X5 | E70 | M57TU2D30 | 3.0L | 2007 | 2010 |
| BMW | X6 | E71 | M57TU2D30 | 3.0L | 2008 | 2010 |
| BMW | 530D | E60 | M57TUD30 | 3.0L | 2002 | 2008 |
| BMW | 730LD | E66 | M57TUD30 | 3.0L | 2005 | 2008 |
| BMW | X3 | E83 | M57TUD30 | 3.0L | 2005 | 2011 |
| BMW | X5 | E70 | M57TUD30 | 3.0L | 2004 | 2010 |
| BMW | X6 | E71 | M57TUD30 | 3.0L | 2008 | 2010 |
| SKU | ET1262B |
| Barcode # | 9321280329164 |
| Brand | Automotive |
| Product weight | 3.9100kg |
| Shipping weight | 3.910000kg |
| Vehicle Make | BMW |
12 Months
