An essential diagnostic tool for testing potentially faulty electro mechanical relays. This tool tests both 12V / 24V relays, with four / five pins (not late model Ford 4 pin).

Simply plug the relay into the tester - using 12V vehicle power, the relay will be cycled 10 times with the tester applying a signal to the relay coil while checking the function of the internal contacts. The tester applies load to the internal contacts to detect excessive resistance.

• Quickly test 3 common types of electro mechanical relays
• Test relay coil resistance / relay contacts / cyclic testing
• Relay coil resistance: 20 - 500 Ohms
• Test voltage for coil: 9V
• Contact resistance threshold: 200 milliohms

Check circuits on all 6V & 12V systems. 70mm insulated probe, with 3.6m retractable cord.

• 70mm insulated probe
• 3.6m retractable cord

The ET2602 is a high-performance digital clamp meter designed for precision electrical measurements in industrial, commercial, and residential environments. Engineered with True RMS technology, it ensures accurate readings even in the presence of distorted waveforms caused by non-linear loads.

• 30mm clamp opening
• 1000A current AC / DC
• 600V voltage AC / DC
• 4000 Digital display counts
• AC / DC Current & Voltage, Resistance, Capacitance, Frequency, Duty Cycle, temperature
• CAT III 600V rating

Next generation multimeter with rotary dial.

Two LED lights - for illumination, plus continuity.

• 9000 counts
• Triple function display
• Non contact voltage

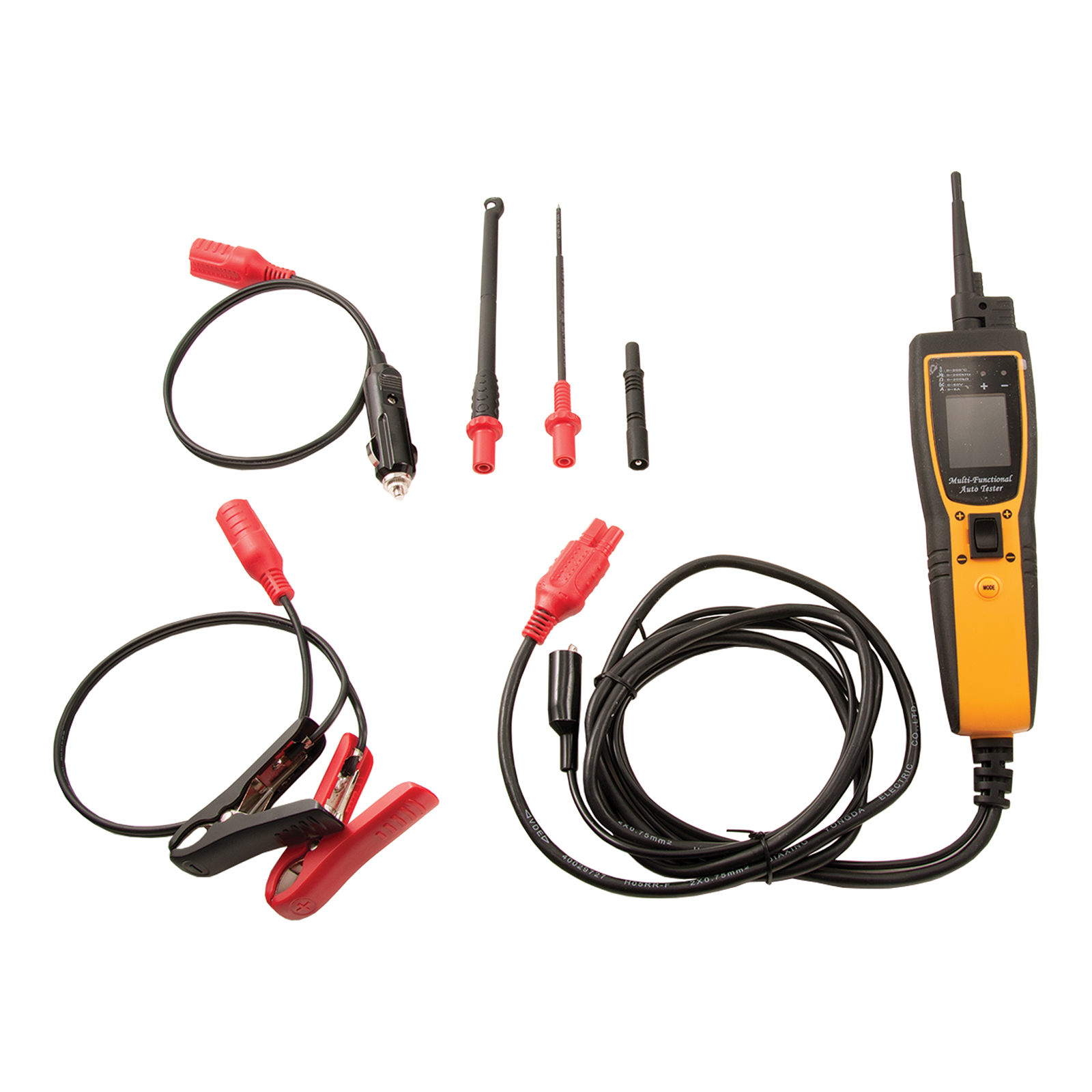

A handheld diagnostic tool designed to test circuits / electrical connections.Operates from 3-48V. Includes probe adaptor for testing terminal connections.

An extension cable for the ET0700. Ideal for working on trucks/rear of vehicle.

The perfect electrical circuit test assistant! Get the job done with ease!

Compatible with standard 4 and 5 terminal relay circuits and can be used with most car makes and models. The RelaySim Pro can energise any relay that powers DC electric motors, fuel pumps, cooling fans, blower motors, window motors, and any other motor actuated by a relay), headlights, and other car lighting applications or almost all electrical actuators, such as electromagnetic, electromechanical, and electrohydraulic. Additionally, it can be used in series (in place of a fuse) with most other circuits rated for 25A or less. The device is suitable for both 12-volt and 24-volt systems and does not limit the operating current range. The operating range for continuous usage is up to 21 amps. The device supports a maximum surge of 27 amps, regardless of whether the voltage is 12V or 24V. Two LEDs (85 and 86 terminals) indicate voltage, polarity, and continuity in the relay coil circuit.

RelaySim Pro has a built-in dual high-definition LCD digital display that allows you to observe the current and voltage values in the circuit under test. The device measures the current flowing through the 87 or 87a circuit, depending on which one is currently activated. Also, it measures and displays voltage for circuits 85, 86, 87, 87a, and 30. You can directly observe the amperage and voltage going into an activated circuit, allowing you to assess the load's health. If an actuator is drawing more current than specified, or the current load is inconsistent during operation, the load/actuator is suspect and should be replaced.

• Suits 12V and 24V applications
• Separate control of the 87 and 87a relay circuit
• Integrated a dual high-definition LCD digital display
• Built-in DC ampere meter 0...50A
• Up to 21 amp operating current (for both 12V and 24V applications. See the specs for more details)
• Measurement of the current through the activated circuit
• Built-in DC voltage meter 0...199.9V
• Independent voltage measurement on each relay terminal
• Open load detection in OFF-state
• Flags a fail event (Status LED)

Check circuits on all 6V & 12V systems. 70mm insulated probe, with 3.6m retractable cord.

• 70mm insulated probe
• 3.6m retractable cord

This circuit tester is designed for sensitive circuits such as injector pulse, and automotive computer circuits.

Operates from 3-15V (for 6 - 12V systems). Handle glows red for positive polarity, and green for negative polarity. Supplied with 48" ground wire.

• 3 - 15V voltage range
• 75mm probe length
