Endeavour 12V | 24V Relay Tester

SKU: ET2322

Automotive

$105.00
In Stock

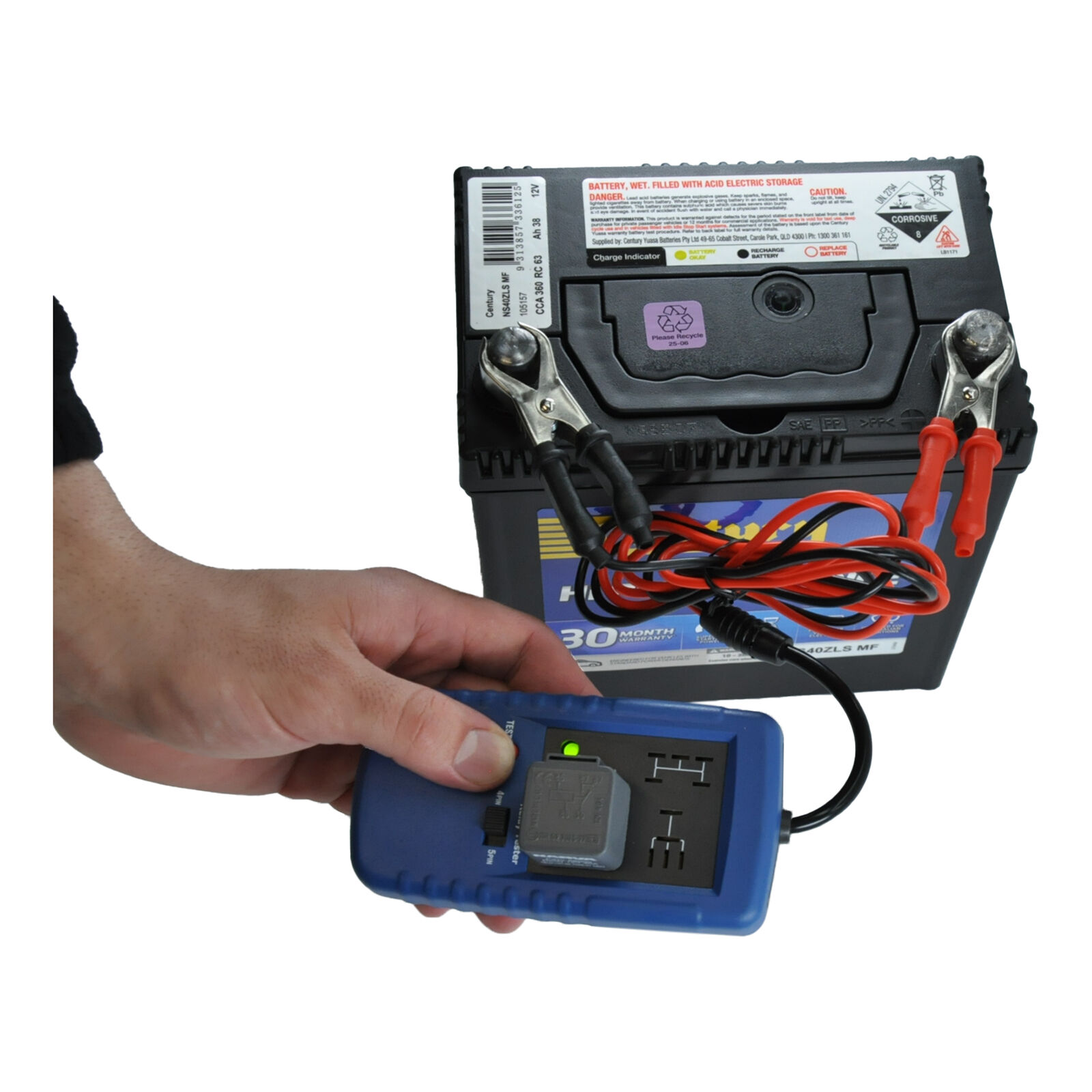

An essential diagnostic tool for testing potentially faulty electro mechanical relays. This tool tests both 12V / 24V relays, with four / five pins (not late model Ford 4 pin).

Simply plug the relay into the tester - using 12V vehicle power, the relay will be cycled 10 times with the tester applying a signal to the relay coil while checking the function of the internal contacts. The tester applies load to the internal contacts to detect excessive resistance.

  • Quickly test 3 common types of electro mechanical relays
  • Test relay coil resistance / relay contacts / cyclic testing
  • Relay coil resistance: 20 - 500 Ohms
  • Test voltage for coil: 9V
  • Contact resistance threshold: 200 milliohms

SKU ET2322
Barcode # 9321280391321
Brand Automotive
Product weight 0.3000kg
Shipping weight 0.300000kg

12 Months
