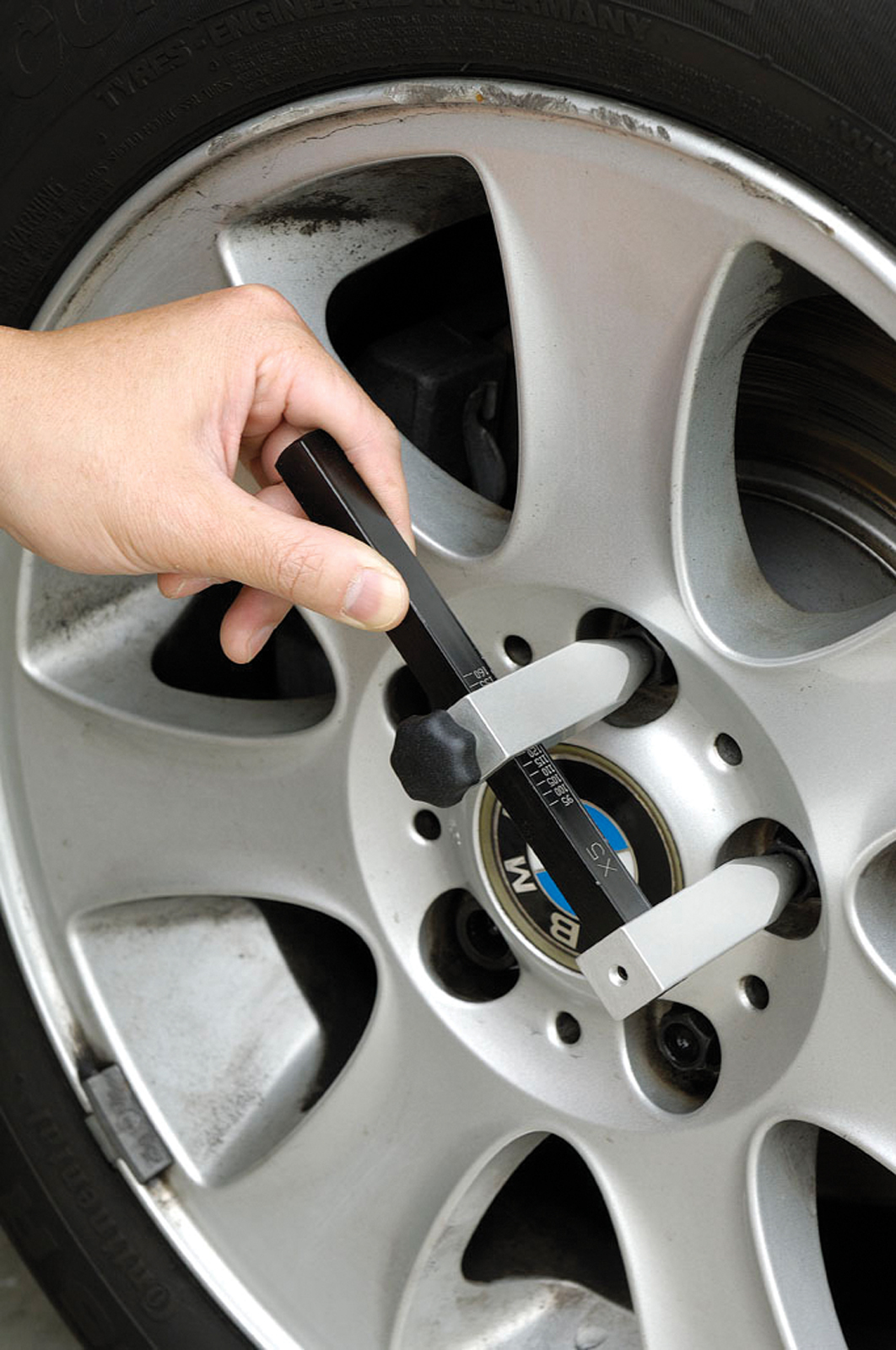

Wheel Bolt Pattern Gauge Tool

SKU: ET6336


Measures most common 4 | 5 | 6 | 8 lug bolt patterns. Can be used to measure a wheel or turned over to measure the studs on a vehicle.

  • 4 lug (98 - 140mm)
  • 5 lug (100 - 150mm)
  • 6 lug (114 - 140mm)
  • 8 lug (170mm)

SKU ET6336
Barcode # 9321280397620
Brand Automotive
Product weight 0.2400kg
Shipping weight 0.240000kg

12 Months
