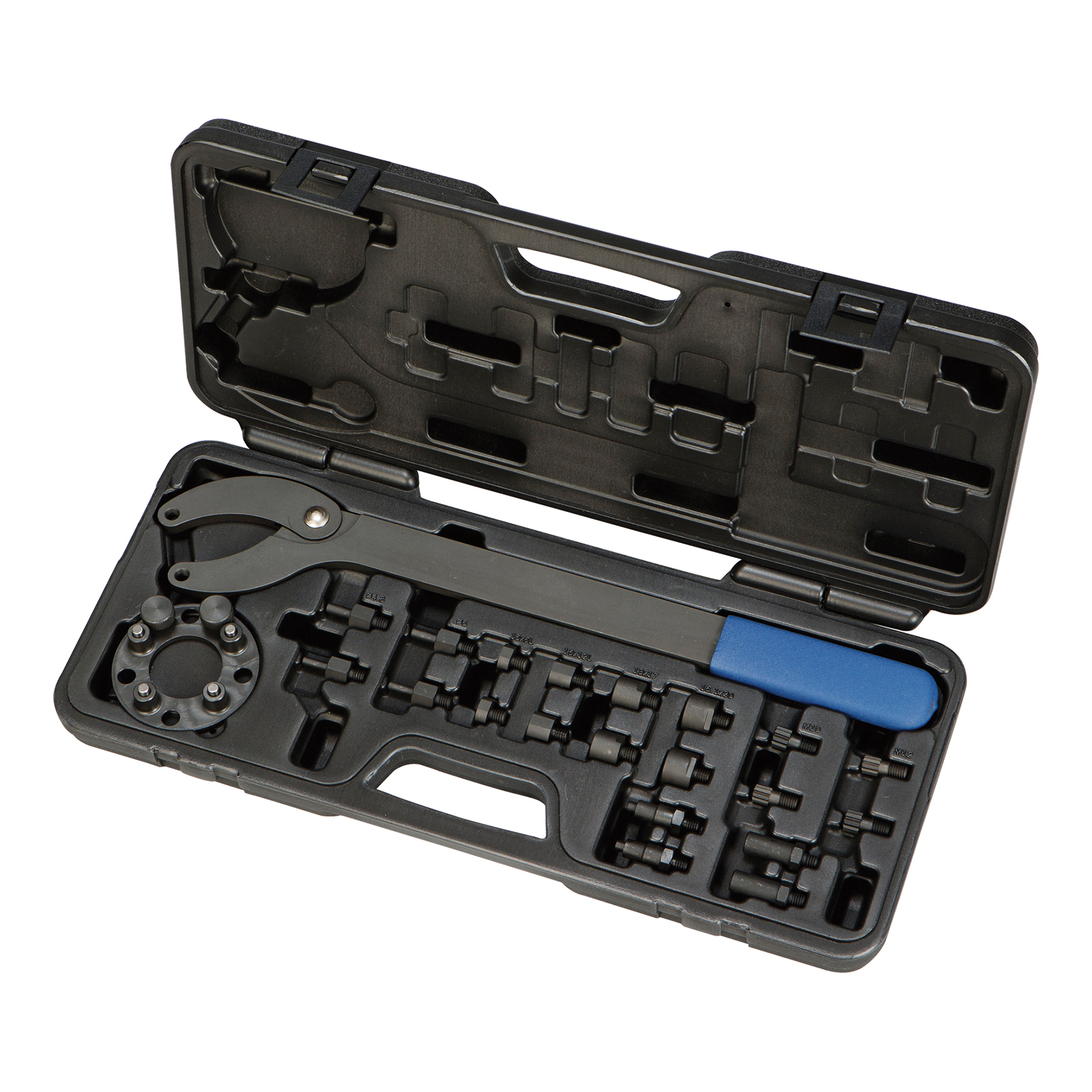

A very handy kit, with a wide range of interchangeable pins, for holding the camshaft gear when loosening / tightening the centre bolt.
The adjustable jaw opening / interchangeable pin sets allows this tool to be used almost universally, although with the addition of the T10554 counterhold tool, this kit is specifically designed for VAG vehicles.
- Adaptor sizes: ¯4.8mm, ¯6mm, square 15mm x 6mm, square 15mm x 12mm, cup 13mm x 17mm, cup 16mm x 20mm, Spline M10, M12
- OEM Equiv: T10172 | T10554
Engine Code(s)
DFCA, CZCA, CHZB, DKJA, DKRF, CVNA, CMBA, CZDA, CHZC, CHPA, CYVB, CYVC, CHZJ, CHZL, CHYB, CJZD, CJZC, DAVA, CXEB, CXEC, DFGA, DAWA
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Skoda | Octavia | NE | CHPA | 1.4L | 2013 | 2015 |
| Volkswagen | Golf | MK7 | CHPA | 1.4L | 2012 | 2015 |
| Volkswagen | Up! | AA | CHYB | 1.0L | 2012 | 2014 |
| Skoda | Citigo | AA | CHYB | 1.0L | 2013 | 2014 |
| Skoda | Fabia | NJ | CHYB | 1.0L | 2018 | 2021 |
| Audi | A1 | 8X | CHZB | 1.0L | 2015 | 2019 |
| Skoda | Fabio | NJ | CHZB | 1.0L | 2017 | |
| Skoda | Rapid | NH | CHZB | 1..0L | 2018 | |
| Skoda | Fabia | NJ | CHZC | 1.0L | 2017 | 2021 |
| Volkswagen | Polo | AW | CHZJ | 1.0L | 2017 | 2021 |
| Volkswagen | Polo | AW | CHZL | 1.0L | 2017 | 2021 |
| Skoda | Fabia | NJ | CJZC | 1.2L | 2015 | 2017 |
| Volkswagen | Polo | MK5 | CJZC | 1.2L | 2014 | 2018 |
| Skoda | Rapid | NH | CJZC | 1.2L | 2015 | 2019 |
| Skoda | Fabia | Typ NJ | CJZD | 1.2L | 2015 | 2017 |
| Skoda | Rapid | Typ NH | CJZD | 1.2L | 2015 | 2017 |
| Volkswagen | Polo | 6C | CJZD | 1.2L | 2014 | 2018 |
| Audi | A3 | 8V | CMBA | 1.4L | 2013 | 2014 |
| Volkswagen | Golf | MK7 | CMBA | 1.4L | 2012 | 2015 |
| Audi | A4 | B9 | CVNA | 1.4L | 2015 | 2020 |
| Volkswagen | Multivan | T6 | CXEB | 2.0L | 2015 | 2020 |
| Volkswagen | Transporter | T6 | CXEB | 2.0L | 2017 | 2019 |
| Volkswagen | California | 7H | CXEC | 2.0L | 2020 | |
| Volkswagen | Multivan | T6 | CXEC | 2.0L | 2020 | |
| Volkswagen | Transporter | T6.1 | CXEC | 2.0L | 2020 | |
| Skoda | Yeti | Typ 5L | CYVB | 1.2L | 2015 | 2017 |
| Volkswagen | Caddy | 2K | CYVC | 1.2L | 2016 | 2021 |
| Audi | A1 | 8X | CZCA | 1.4L | 2015 | 2019 |
| Audi | A3 | 8V | CZCA | 1.4L | 2014 | 2016 |
| Skoda | Rapid | NH | CZCA | 1.4L | 2015 | 2020 |
| Skoda | Yeti | 5L | CZCA | 1.4L | 2015 | 2017 |
| Volkswagen | Golf | MK7 | CZCA | 1.4L | 2015 | 2021 |
| Skoda | Octavia | Typ NE | CZDA | 1.4L | 2015 | |
| Skoda | Yeti | Typ 5L | CZDA | 1.4L | 2016 | |
| Volkswagen | Golf | MK7 Typ AU | CZDA | 1.4L | 2015 | |
| Volkswagen | Crafter | SY | DAVA | 2.0L | 2017 | |
| Volkswagen | Crafter | SY | DAWA | 2.0L | 2018 | |
| Volkswagen | Passat | B8 | DFCA | 2.0L | 2015 | 2018 |
| Skoda | Superb | NP | DFCA | 2.0L | 2015 | 2018 |
| Audi | Q2 | GA | DFGA | 2.0L | 2017 | 2018 |
| Skoda | Kodiaq | NS | DFGA | 2.0L | 2017 | |
| Volkswagen | Tiguan | AD1 | DFGA | 2.0L | 2016 | 2018 |
| Audi | A1 | GB | DKJA | 1.0L | 2019 | 2024 |
| SEAT | Arona | KJ | DKJA | 1.0L | 2018 | |
| SEAT | Ibiza | KJ | DKJA | 1.0L | 2017 | |
| Volkswagen | Polo | AW | DKJA | 1.0L | 2017 | 2021 |
| Volkswagen | T-Cross | C1 | DKJA | 1.0L | 2020 | 2024 |
| Audi | A1 | GB | DKRF | 1.0L | 2019 | 2024 |
| Skoda | Kamiq | NW | DKRF | 1.0L | 2020 | 2024 |
| Skoda | Scala | NW | DKRF | 1.0L | 2019 |
T10172
T10554
| SKU | ET1872A |
| Barcode # | 9321280411715 |
| Brand | Automotive |
| Product weight | 2.9000kg |
| Shipping weight | 2.900000kg |
| Vehicle Make | VAG |
| Vehicle Make | Mercedes |
| Vehicle Make | BMW |
| Vehicle Make | Ford |
| Vehicle Make | Mitsubishi |
| Vehicle Make | Honda |
| Vehicle Make | Nissan |
| Vehicle Make | Toyota |
| Vehicle Make | Volvo |
12 Months
