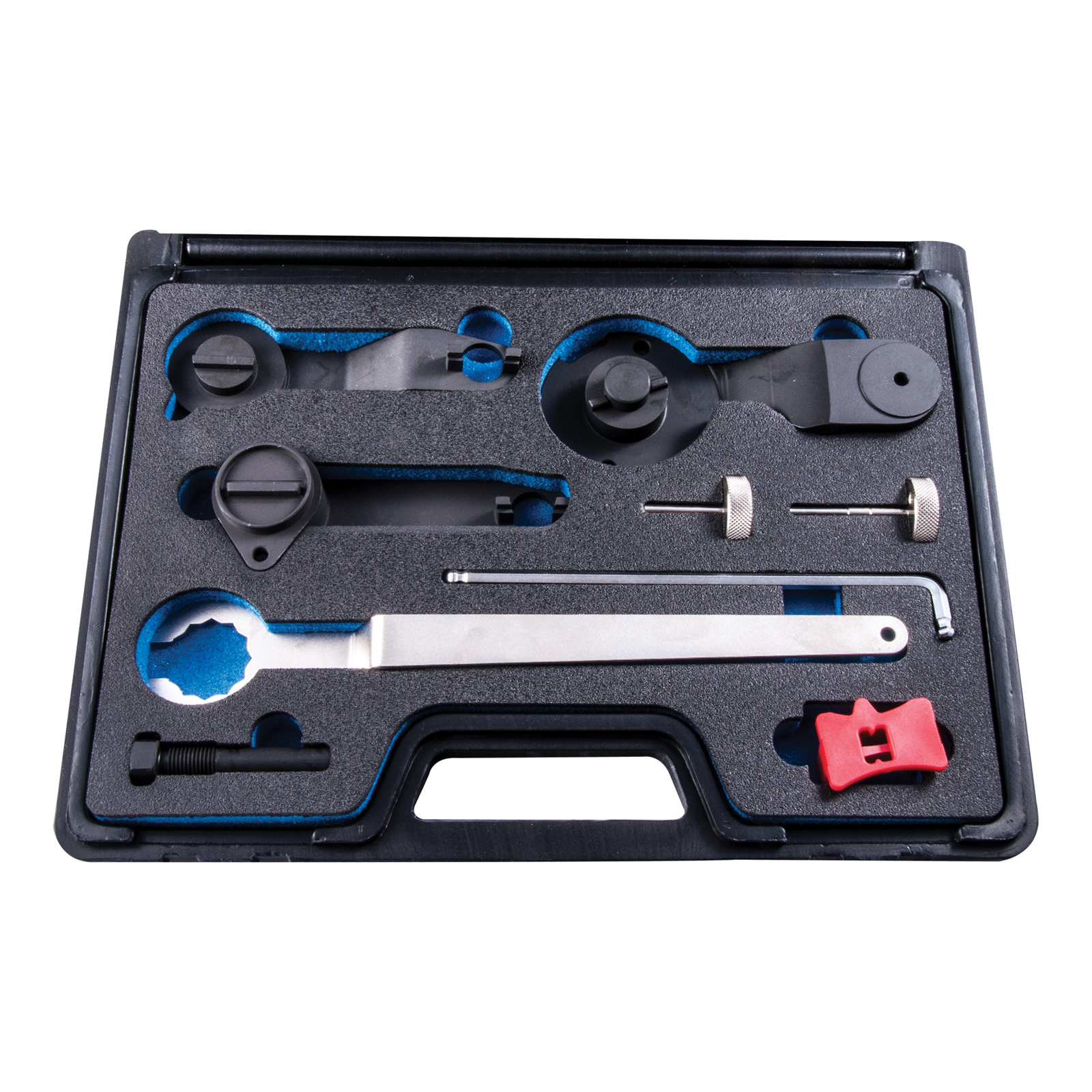

Comprehensive timing tool set for latest generation belt driven petrol TSI engines used across the VAG range. Includes support for 1.4L CoD (cylinder on demand) engines.
- OEM Equiv: T10340 | T10476 | T10477 | T10494 | T10499 | T10504
| SKU | Description | OEM Equivalent Codes |
|---|---|---|
| ET1540 |
VAG Crankshaft Locking Pin |
T10340 |
| ET0379-25 |
Ball End Hex Key | 6mm |
T10264 |
| ET9916 |
VAG Tensioner Wrench |
T10499 |
| TT0477 |
Camshaft Locking Bar |
T10477 |
| TT0476 |
Camshaft Sprocket Locking Tool 1.0L 4V 3Cyl |
T10476 |
| TT0494 |
Camshaft Locking Tool 1.2L | 1.4L TSi 4 Cyl |
T10494 |
| TT0504 |
Camshaft Positioning Tool |
T10504 |
| TT0504-1 |
Camshaft Timing Pin (Short) |
T10504/1 |
| TT0504-2 |
Camshaft Timing Pin |
T10504/2 |
Engine Code(s)
CHYB, CYVB, CJZC, CJZD, CZCA, CMBA, CXSA, CHPB, CHPA, CUKB, CZDA, CPTA, CZEA, CZCB
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Skoda | Octavia | NE | CHPA | 1.4L | 2013 | 2015 |
| Volkswagen | Golf | MK7 | CHPA | 1.4L | 2012 | 2015 |
| Audi | Q3 | Typ 8U | CHPB | 1.4L | 2013 | 2015 |
| Volkswagen | Up! | AA | CHYB | 1.0L | 2012 | 2014 |
| Skoda | Citigo | AA | CHYB | 1.0L | 2013 | 2014 |
| Skoda | Fabia | NJ | CJZC | 1.2L | 2015 | |
| Volkswagen | Polo | MK5 | CJZC | 1.2L | 2014 | |
| Skoda | Fabia | Typ NJ | CJZD | 1.2L | 2015 | |
| Skoda | Rapid | Typ NH | CJZD | 1.2L | 2015 | |
| Volkswagen | Polo | MK5 Typ 6R | CJZD | 1.2L | 2014 | |
| Audi | A3 | 8V | CMBA | 1.4L | 2013 | 2014 |
| Volkswagen | Golf | MK7 | CMBA | 1.4L | 2012 | 2015 |
| Audi | A3 | 8V | CPTA | 1.4L | 2012 | 2016 |
| Audi | Q3 | Typ 8V | CUKB | 1.4L | 2015 | |
| Volkswagen | Golf | MK7 | CXSA | 1.4L | 2013 | 2015 |
| Skoda | Yeti | Typ 5L | CYVB | 1.2L | 2015 | |
| Audi | A1 | 8X | CZCA | 1.4L | 2015 | |
| Audi | A3 | 8V | CZCA | 1.4L | 2014 | |
| Skoda | Rapid | NH | CZCA | 1.4L | 2015 | |
| Skoda | Yeti | 5L | CZCA | 1.4L | 2015 | |
| Volkswagen | Golf | MK7 | CZCA | 1.4L | 2015 | |
| Volkswagen | Caddy | 2K | CZCB | 1.4L | 2015 | |
| Skoda | Octavia | Typ NE | CZDA | 1.4L | 2015 | |
| Skoda | Yeti | Typ 5L | CZDA | 1.4L | 2016 | |
| Volkswagen | Golf | MK7 Typ AU | CZDA | 1.4L | 2015 | |
| Audi | A3 | Typ 8V | CZEA | 1.4L | 2014 | |
| Audi | Q2 | Typ GA | CZEA | 1.4L | 2016 | |
| Audi | Q3 | Typ 8U | CZEA | 1.4L | 2015 | |
| Volkswagen | Tiguan | Typ 5N | CZEA | 1.4L | 2016 |
| SKU | ET0070 |
| Barcode # | 9321280377943 |
| Brand | Automotive |
| Shipping weight | 2.6000kg |
| Vehicle Make | VAG |
12 Months
