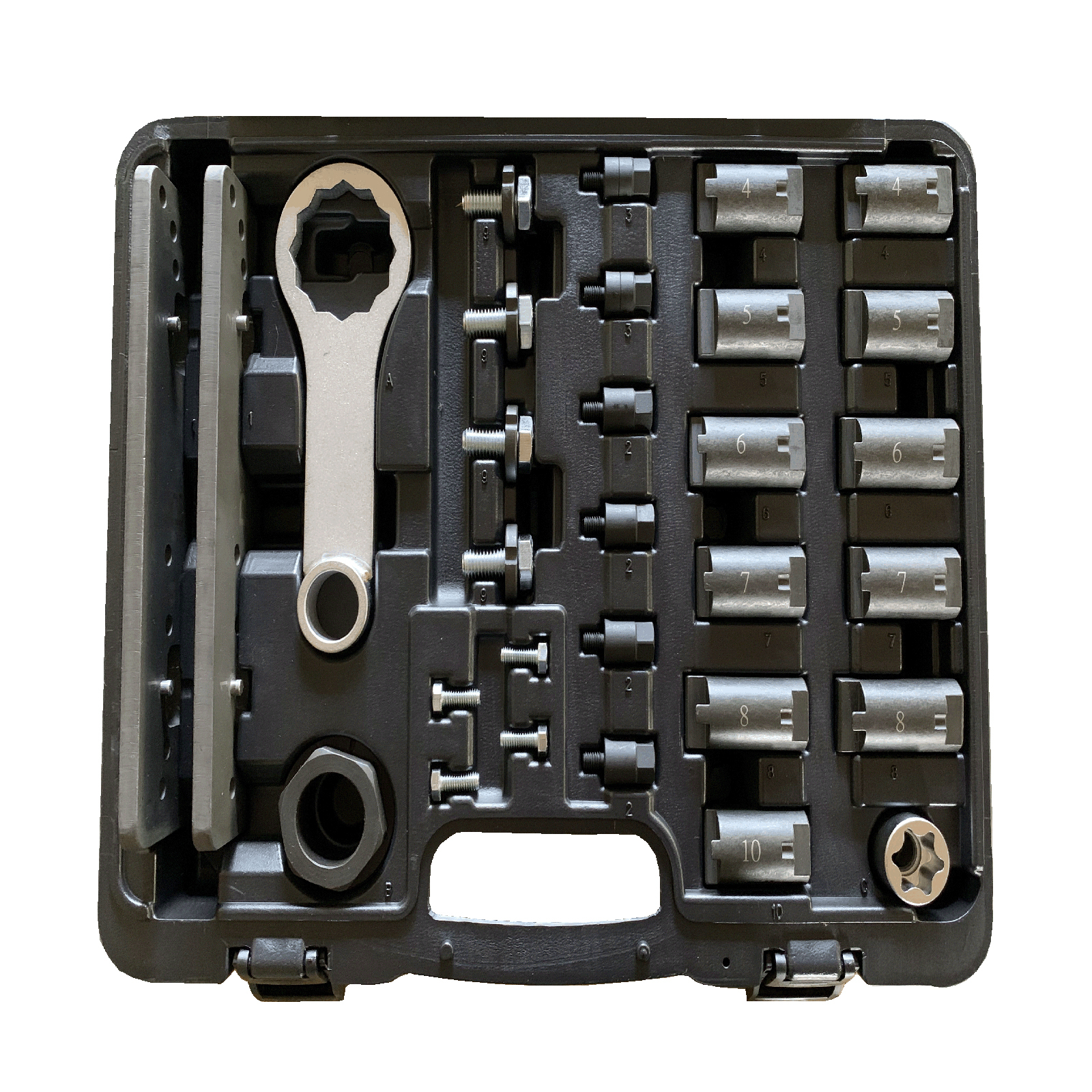

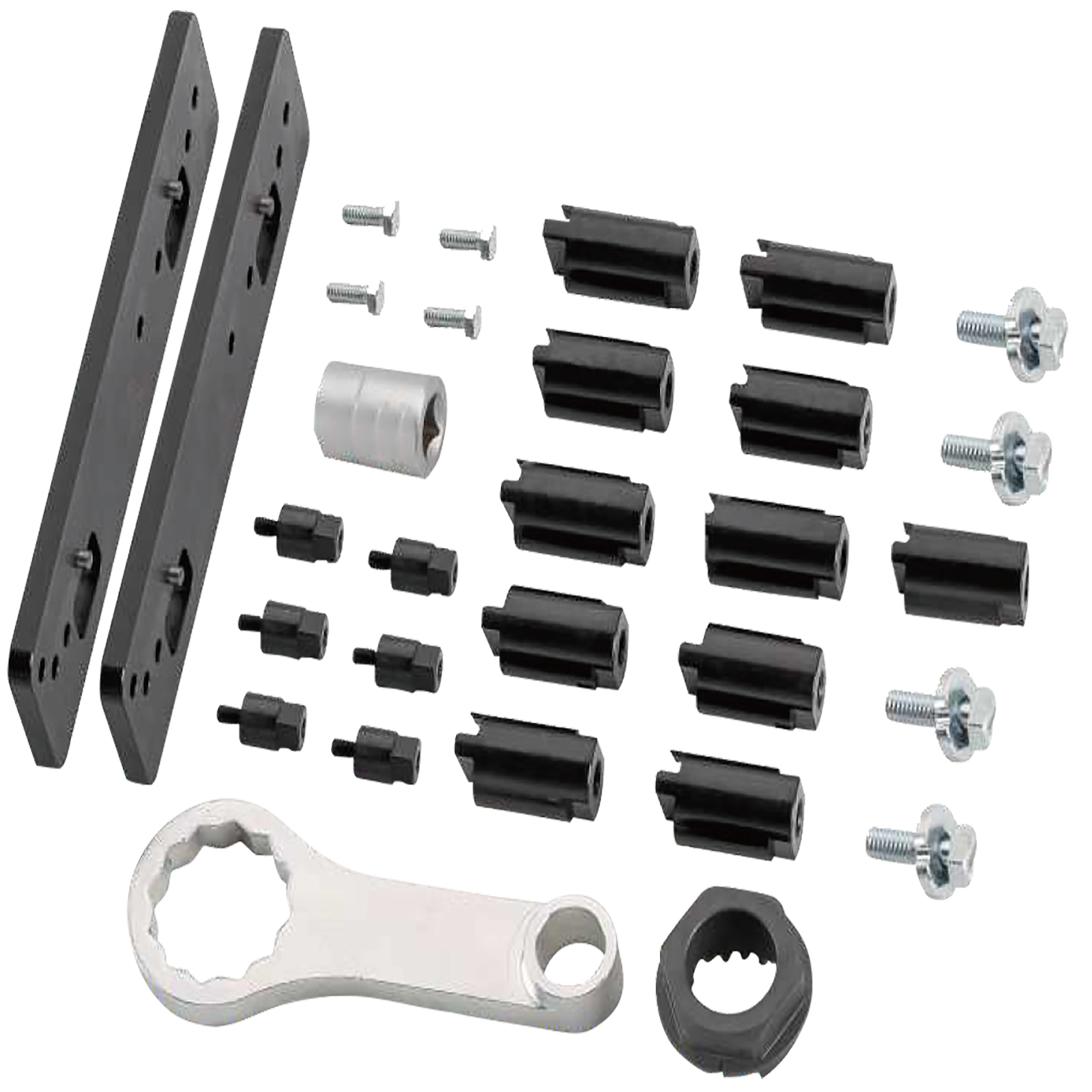

A specalised timing kit for the latest generation EA389 engines fitted to VAG 2.9L | 3.0L petrol engines. The kit locks camshafts during timing service.
- Applications: Audi | Porsche Cayenne
- Engine codes: 2.9L DECA, 3.0L CWGD, CZSE, DCDB, DLZA
- OEM equiv: T40331 | T90000 | T90001 | T90002
Engine Code(s)
DECA, CWGD, CZSE, DCBD, DLZA, DCBE
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Audi | S4 | B9 | CWGD | 3.0L | 2016 | |
| Audi | S4 | F5 | CWGD | 3.0L | 2017 | |
| Audi | S4 | FY | CWGD | 3.0L | 2017 | 2021 |
| Audi | A8 | D5 | CZSE | 3.0L | 2018 | 2020 |
| Audi | Q7 | 4M | DCBD | 3.0L | 2020 | |
| Audi | Q8 | F1 | DCBD | 3.0L | 2018 | |
| Porsche | Cayenne | 9YA | DCBE | 3.0L | 2018 | |
| Porsche | Cayenne | 9YB | DCBE | 3.0L | 2018 | |
| Audi | RS4 | B9 | DECA | 2.9L | 2018 | |
| Audi | RS5 | F5 | DECA | 2.9L | 2017 | |
| Audi | A6 | C8 | DLZA | 3.0L | 2019 | |
| Audi | A7 | 4K | DLZA | 3.0L | 2019 |
Engine Code(s)
DECA, CWGD, CZSE, DCBD, DLZA, DCBE
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Audi | S4 | B9 | CWGD | 3.0L | 2016 | |
| Audi | S4 | F5 | CWGD | 3.0L | 2017 | |
| Audi | S4 | FY | CWGD | 3.0L | 2017 | 2021 |
| Audi | A8 | D5 | CZSE | 3.0L | 2018 | 2020 |
| Audi | Q7 | 4M | DCBD | 3.0L | 2020 | |
| Audi | Q8 | F1 | DCBD | 3.0L | 2018 | |
| Porsche | Cayenne | 9YA | DCBE | 3.0L | 2018 | |
| Porsche | Cayenne | 9YB | DCBE | 3.0L | 2018 | |
| Audi | RS4 | B9 | DECA | 2.9L | 2018 | |
| Audi | RS5 | F5 | DECA | 2.9L | 2017 | |
| Audi | A6 | C8 | DLZA | 3.0L | 2019 | |
| Audi | A7 | 4K | DLZA | 3.0L | 2019 |
| SKU | ET0068 |
| Barcode # | 9321280423633 |
| Brand | Automotive |
| Product weight | 4.65kg |
| Shipping weight | 4.65kg |
12 Months
