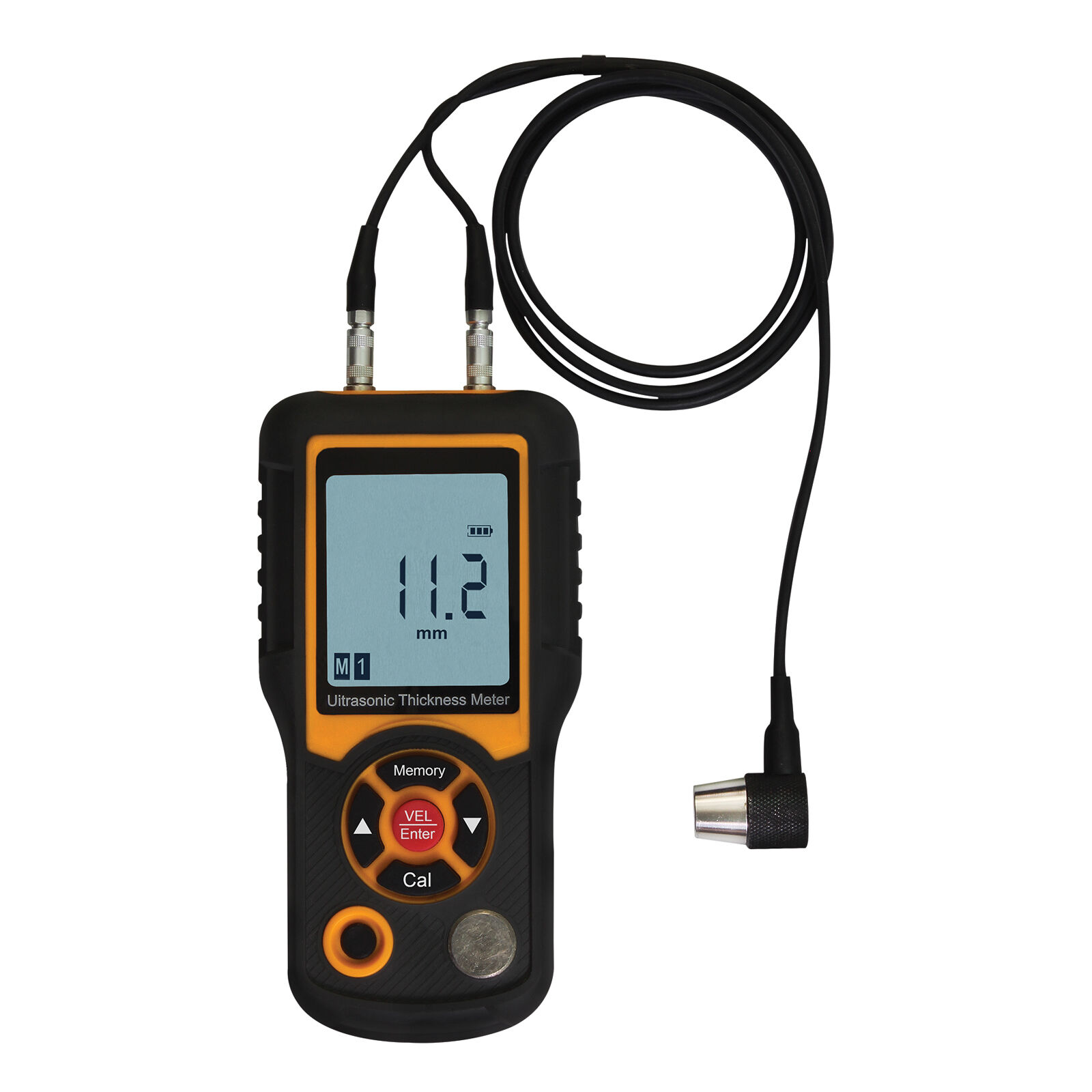

Ultrasonic Thickness Tester | 2mHz Probe

SKU: ET2044

Automotive


Smart ultrasonic thickness meter that can measure thickness / sound speed of many types of materials such as metal, plastic, ceramic. Ideal for automotive applications to measure the thickness of piston heads. Supplied with ultrasonic gel. Additional gel available separately.

  • Probe frequency: 2mHz
  • Range: 2.0 - 225mm (steel)
  • Resolution: 0.1mm
  • 90cm cable length
  • +/- (1%H+0.1)mm accuracy

SKU ET2044
Barcode # 9321280397514
Brand Automotive
Product weight 0.8500kg
Shipping weight 0.930000kg

12 Months
