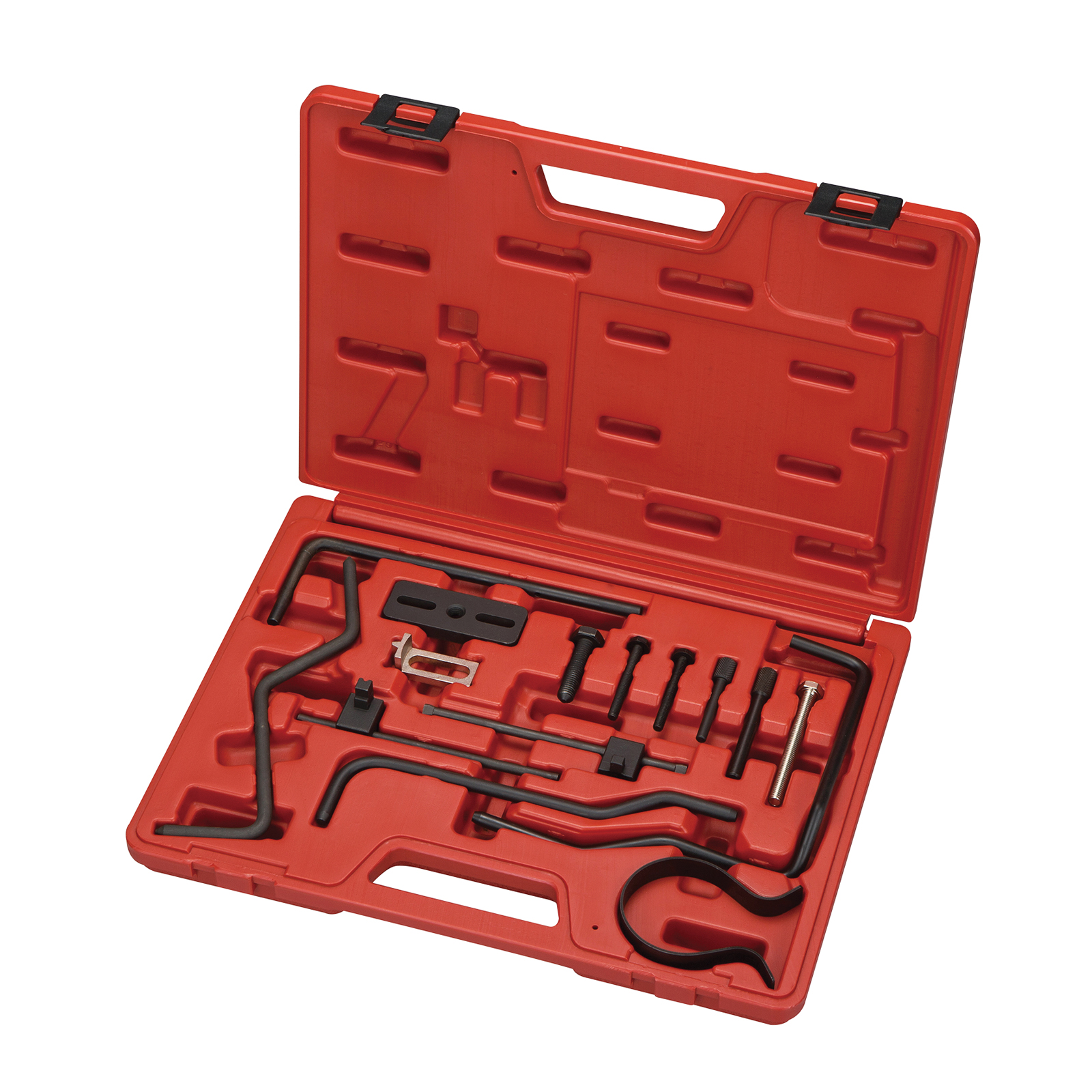

A specialised kit for timing belt replacement on PSA common rail diesel engines. Includes tools for crankshaft gear timing.
| SKU | Description | OEM Equivalent Codes |
|---|---|---|
| TT7005 |
Set Screw | M8 x 70mm |
0188X |
| TT0188 |
Crankshaft Timing Pin 8mm |
0153N 0188D 0188Y 0288D 7099-TM |
| ET2171-18 |
Flywheel Locking Tool |
0134Q 0134AF 0188F 9044-T 1 870 765 001 |
| TT4529 |
Camshaft Timing Pin |
0133AJ2 0188M 4533-TAC2 |
| TT4533 |
Tensioner Adjuster |
0178E 0188J/J1 5711-TE |
| TT4535 |
Tensioner Adjuster |
0188J2 |
| SKU | ET1686 |
| Barcode # | 9321280330948 |
| Brand | Automotive |
| Product weight | 1.7300kg |
| Shipping weight | 1.730000kg |
| Vehicle Make | PSA |
| Vehicle Make | Peugeot |
| Vehicle Make | Citroen |
12 Months
Calculate Shipping
Flat Rate Shipping - $16.50
$16.50 flat rate shipping
Manual handling charge for long packaged products - $35.00
Manual handling charge for long packaged products
