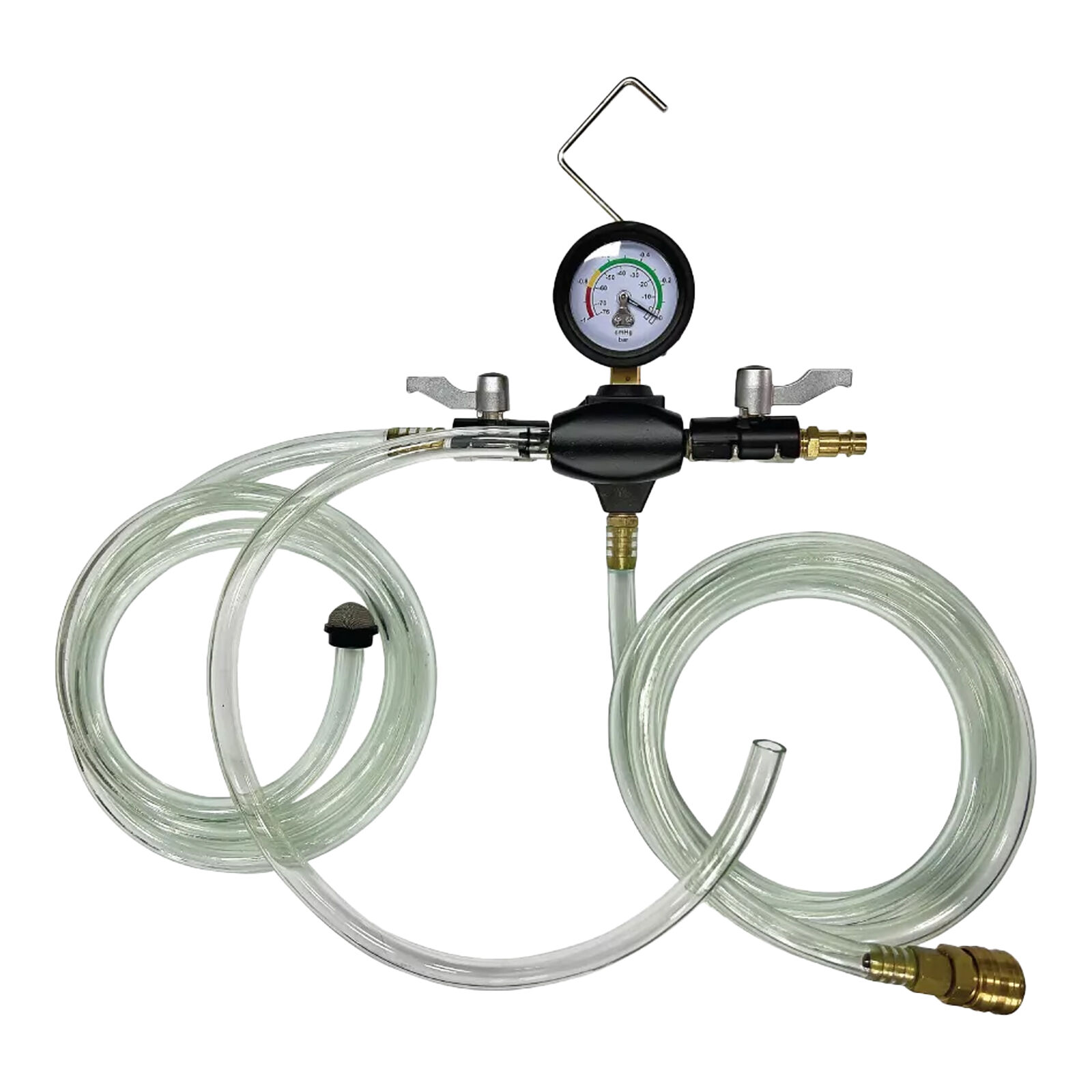

This set is designed to refill radiator coolant by creating a vacuum in the cooling system, allowing coolant to be replaced without introducing air pockets. Supplied with a cone shaped adaptor to suit a variety of radiator filler necks.

• Lift vehicle / drain old coolant / replace drain plug
• Hang vacuum unit under bonnet
• Connect coolant hose and drain hose to vacuum pump (check that all valves are closed)
• Put coolant hose in coolant / make sure hose is always submerged
• Turn on vacuum switch and vacuum valve. Turn off once vacuum is created
• Turn on coolant valve. Coolant will flow into the radiator

The ET3142 is a professional-grade breakout box designed for advanced in-vehicle diagnostics and bench-top ECU testing on both 12V and 24V systems. It exposes every OBDII pin for full signal access, monitors live circuit voltages with true-RMS accuracy, and includes selectable CAN termination for controlled network testing. Its secure, high-speed interface allows safe integration of scopes, scan tools, and other diagnostic equipment, making it an essential tool for precise fault-finding, signal analysis, and ECU development work.

• Real Time VRMS Voltage Monitoring on All OBDII Pins - the integrated LCD displays true RMS voltage across all 16 pins, delivering accurate diagnostics even on fluctuating or noisy circuits. Green background highlights active dynamic signals, while immediate alerts help identify power or ground issues on critical pins (4, 5, and 16).
• Built In CAN Termination for Bench & ECU Testing - an onboard 120 ohm CAN termination switch is ideal for situations where termination is missing such as single ECU or small bench networks. This helps improve signal integrity, reduce line reflections, and stabilise communication during advanced diagnostic work.
• Intelligent Voltage Protection & Audible Alarm System - reverse polarity protection, automatic alarms for over voltage and under voltage conditions, and support for currents up to 2A, ensures that both the vehicle and diagnostic tools stay protected during testing.

Specialised adaptor cap to connect to the cooling system expansion tank for leak pressure testing. This cap is suitable for late model BYD vehicles, including hybrid and battery electric models.

• Applications: BYD Atto 3 | Dolphin | E6Y | Seal
• M33.6 x P3.0 internal thread

A coolant pressure test adaptor designed for MG electric vehicles. Connect to the coolant recovery tank expansion neck. Part of the Endeavour Tools range of radiator pressure test equipment.

This cap is not included in the ET1039C master test kit.

• Suitable for battery and Smart Electric Drive System (EDS) coolant expansion tanks on MG vehicles
• M52 x 3.0

Specialised adaptor cap to connect to the cooling system expansion tank for leak pressure testing. This cap is suitable for late model Haval vehicles, including petrol engine and hybrid models.

• Applications: Haval H6 | H9 | Jolion
• M63 x P4.0

Our new updated radiator pressure test kit sets the new industry benchmark!

Faster, easier, and more comfortable to use, than existing kits.

Perform cooling system leak tests, vacuum type coolant refills, and leak tests on radiator caps.

• Updated adaptors (more coverage than older kits) - includes new Volvo Hybrids
• Updated pressure pump, coolant refill and adaptor design
• Faster refill speed - 91 ml / sec vs 37 ml
• Connectors are compatible with superceded adaptor kits

A specialised radiator test cap for post 2015 Hyundai / Kia vehicles. Part of the Endeavour Tools range of specialised radiator test adaptors.

This cap is designed to be used with the ET1039 radiator adaptor test kit.

• Applications: Hyundai Elantra (16-19), i30 (16-19), Ioniq 1.6L GDI (from 2016), Kona 1.0L & 1.6 GDi (from 2017), Kona EV (from 2017), Tucson 1.6 GDi & 1.7 CRDi (from 2015), Veloster (2019) | Kia Picanto 1.0L GDI (17-), Sportage (17-18)
• Suits OEM cap: 25330-D3000

This radiator test cap suits N14 engines fitted to BMW Mini vehicles since 2008. This cap is a screw on type.

• Engines: N12 (08-10) | N14 (08-)
