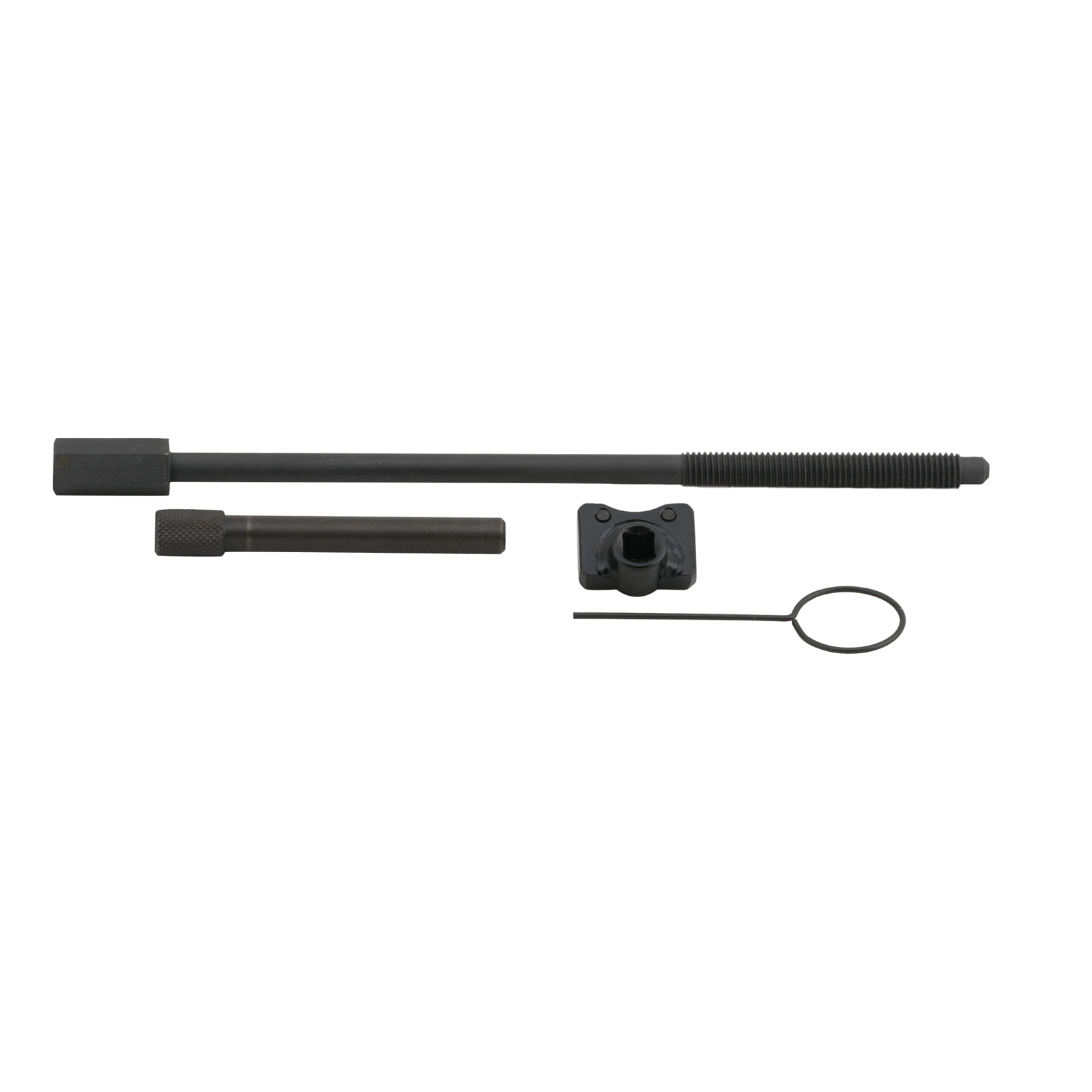

Hyundai Timing Kit

1.6L - 3.8L
SKU: ET9215

Automotive


Specialised tools for adjusting the tension of the timing belt, once a new belt has been fitted. Suitable for a range of Hyundai / Mitsubishi / Proton / Volvo vehicles.

  • Engine codes: Hyundai G4CR | G4GR , Mitsubishi: 6G75 | 4G63 | Lancer (CF-CJ)
  • Applications: Hyundai Lantra (J1-J3) (91-00)Mitsubishi: 80 (DB) 3.8L (6G75) (05-08) | Express / Starwagon 2.0L - 3.0L (94-06) | Lancer (CG - CJ) 2.0L (02-15) | Magna (TS - TW) 3.0L - 3.5L (94-05) | Outlander (ZE - ZH) 2.4L (03-12) | Pajero (NL - NP) 3.5L - 3.8L (97-06) | Triton (MK - ML) 2.4L - 3.5L (96-10)

SKU Description OEM Equivalent Codes
ET2172

Automatic Timing Belt Tensi

MD998767

T40009

999 5709

09244-28000

TT0019

Tension Wrench

09244-28000

Engine Code(s)

4G93, G4CR, 6G75, 4G63, 4G94, 4B11, G4GR, G4GM, G4CN, G4GF, G6CU, 4G64, 4G69, 4B12, 6G74

Vehicle Make Model Series Engine Code Engine Size Year Start Year End
MitsubishiLancerCJ4B112.0L2008
MitsubishiOutlanderZH4B112.0L20102012
MitsubishiOutlanderZG | ZH4B122.4L20062012
MitsubishiExpressSJ4G632.0L19942006
MitsubishiStarwagonSJ4G632.0L19942006
MitsubishiOutlanderZE4G642.4L20022004
MitsubishiTritonMK4G642.4L19962006
MitsubishiTritonML4G642.4L20072008
MitsubishiOutlanderZF4G692.4L20042006
ProtonM21C904G931.8L19972000
ProtonSatriaC904G931.8L19992007
MitsubishiLancerCG4G942.0L20022006
MitsubishiLancerCH4G942.0L20042005
MitsubishiPajeroNL6G743.5L19972000
MitsubishiPajeroNM | NP6G743.5L20002004
MitsubishiChallenger6G743.5L19972001
MitsubishiDiamanteKE6G743.5L19962005
MitsubishiMagnaTH6G743.5L19992000
MitsubishiMagnaTJ6G743.5L20002003
MitsubishiMagnaTL6G743.5L20022004
MitsubishiMagnaTW6G743.5L20042005
MitsubishiPajeroNJ6G743.5L19931996
MitsubishiPajeroNL6G743.5L19972000
MitsubishiTritonML6G743.5L20062009
MitsubishiVeradaKE6G743.5L19961997
MitsubishiVeradaKF6G743.5L19971999
MitsubishiVeradaKH6G743.5L19992000
MitsubishiVeradaKJ6G743.5L20002003
MitsubishiVeradaKL6G743.5L20032004
Mitsubishi380DB6G753.8L20052008
MitsubishiPajeroNP6G753.8L20032006
HyundaiLantraJ1G4CN1.8L19921995
HyundaiLantraJ1G4CR1.6L19911992
HyundaiLantraJ3G4GF2.0L19992000
HyundaiLantraJ2 | J3G4GM1.8L19952000
HyundaiLantraJ2G4GR1.6L19952000
KiaSorentoBLG6CU3.5L20032008
SKU ET9215
Barcode # 9321280345607
Brand Automotive
Product weight 0.1500kg
Shipping weight 0.180000kg
Vehicle Make Hyundai

12 Months
