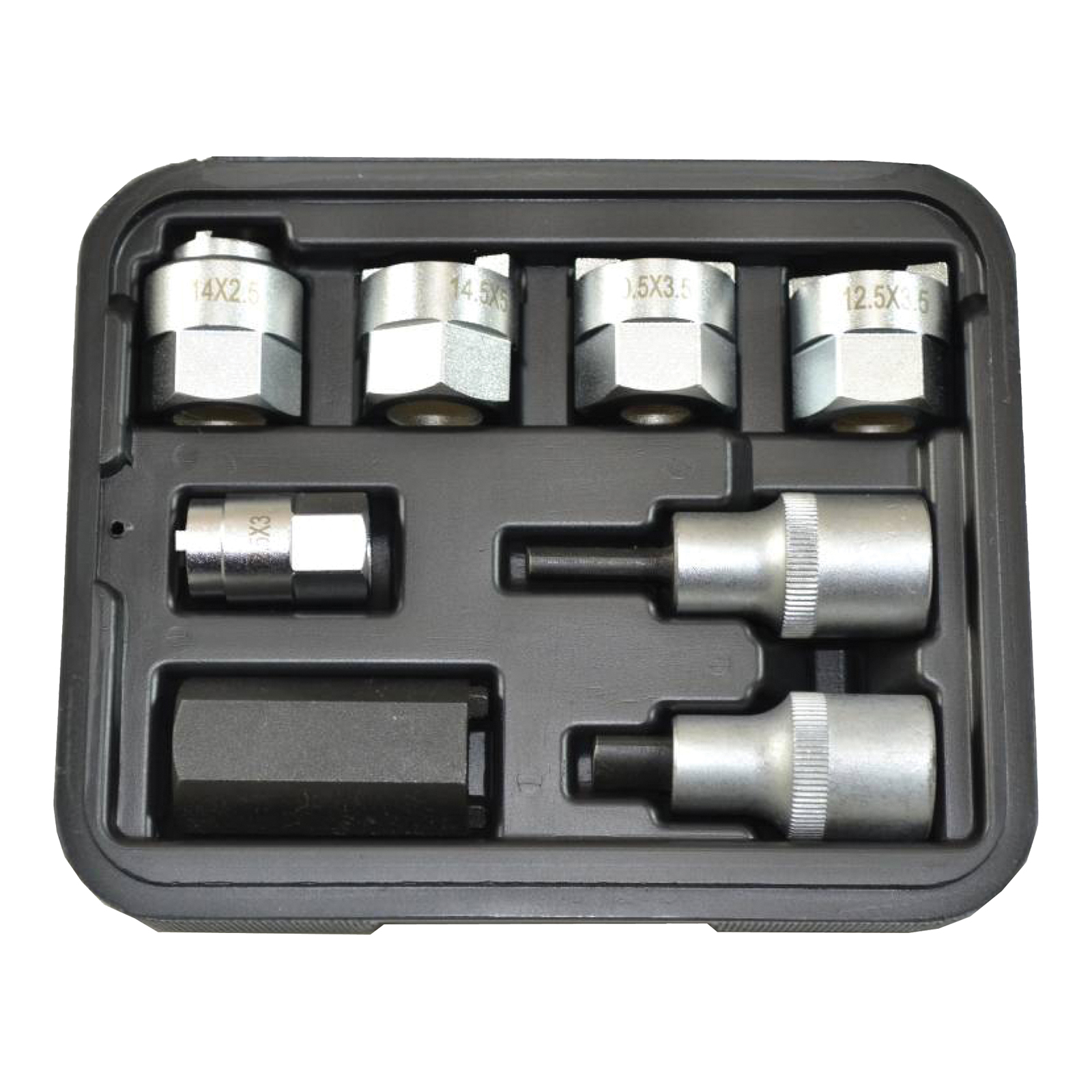

A master kit of suspension strut top nut tools for a wide range of European applications.
- Special strut nut sockets to allow the strut nut to be loosened. Including specific strut nut tools for Mercedes / VW.
- Socket blades suit strut nuts with cross grooves from 3.5mm up.
- Hub strut clamp expanders (1/2" Sq Drv)
- For use with 16mm / 22mm spanners
Shock Absorber Ram Bit Socket Set
These pry sockets are designed to extract / replace strut units from the clamp in the hub casting. These sockets are commonly used in European (especially VAG) / Japanese vehicles).
Two piece kit
- 5 x 7mm | 5.5 x 8.2mm
- 1/2" Sq Drv
Strut Nut Socket | M14 x 2.5 | Mercedes
A specialist socket for suspension strut nut removal. This socket is designed for use specifically with Mercedes S Class vehicles. The socket should be used together with an appropriate hex key, to hold the strut, whilst tightening.
- Applications: Mercedes S Class W220 (00 - 06)
- 12.5mm ID | 2.5mm Blade width/li>
- 16mm hex drive
- 30mm overall length
Mercedes Strut Nut Socket
A specialised strut nut socket for Mercedes C Class (W203 | W209) front suspension strut top nuts. Use with a 7mm hex key to hold the strut in situ whilst tightening.
- Applications: Mercedes C Class (00-08) | CLK (03-08)
- 17mm dia (OD of the pins) | 22mm hex drive
- 28mm overall length
VAG Strut Nut Socket
A specialised socket for installing / removing suspension strut nuts on selected VAG vehicles.
- Applications: Audi 80 / 90, VW Golf Mk I / II
- 22mm hex drive
- 45mm overall length
Shock Absorber Ram Bit Socket Set
These pry sockets are designed to extract / replace strut units from the clamp in the hub casting. These sockets are commonly used in European (especially VAG) / Japanese vehicles).
Two piece kit
- 5 x 7mm | 5.5 x 8.2mm
- 1/2" Sq Drv
Strut Nut Socket | M14 x 2.5 | Mercedes
A specialist socket for suspension strut nut removal. This socket is designed for use specifically with Mercedes S Class vehicles. The socket should be used together with an appropriate hex key, to hold the strut, whilst tightening.
- Applications: Mercedes S Class W220 (00 - 06)
- 12.5mm ID | 2.5mm Blade width/li>
- 16mm hex drive
- 30mm overall length
Mercedes Strut Nut Socket
A specialised strut nut socket for Mercedes C Class (W203 | W209) front suspension strut top nuts. Use with a 7mm hex key to hold the strut in situ whilst tightening.
- Applications: Mercedes C Class (00-08) | CLK (03-08)
- 17mm dia (OD of the pins) | 22mm hex drive
- 28mm overall length
VAG Strut Nut Socket
A specialised socket for installing / removing suspension strut nuts on selected VAG vehicles.
- Applications: Audi 80 / 90, VW Golf Mk I / II
- 22mm hex drive
- 45mm overall length
| SKU | ET6498 |
| Barcode # | 9321280416819 |
| Brand | Automotive |
12 Months
Calculate Shipping
Flat Rate Shipping - $16.50
$16.50 flat rate shipping
Manual handling charge for long packaged products - $35.00
Manual handling charge for long packaged products
