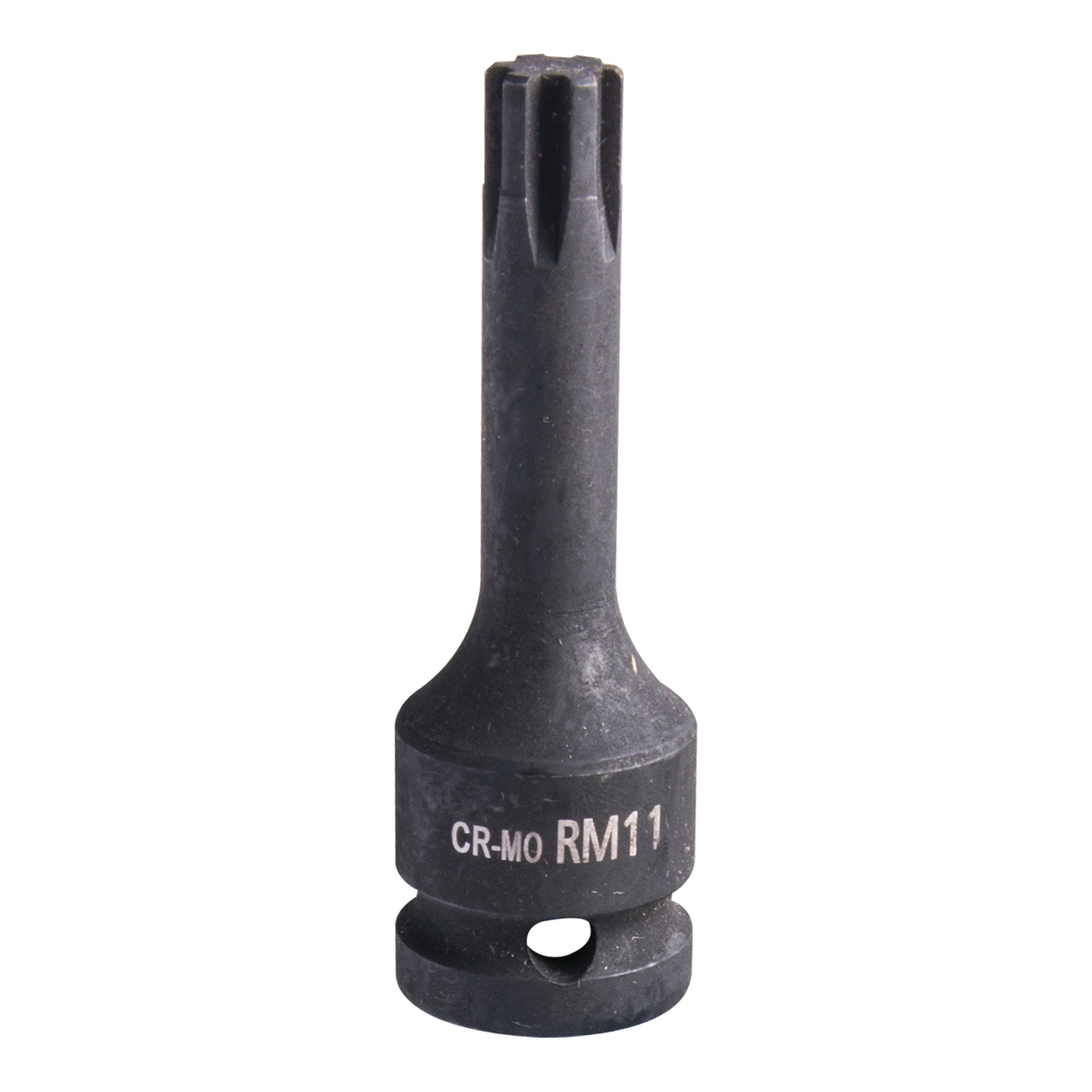

Specialised Ribe impact socket for removing flywheel fixing bolts on Nissan / Renault M9R 2.0L DCi engines.
- M11 Ribe
- 78mm overall length
- 1/2" Sq Drv
- Chrome Moly
Engine Code(s)
M9R.817, M9R.780/6, M9R
Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
Holden | Vivaro | M9R | 2.0L | 2008 | 2010 | |
Renault | Koleos | HZG | M9R | 2.0L | 2017 | |
Nissan | X-Trail | T31 | M9R | 2.0L | 2008 | 2015 |
Renault | Megane | X84 | M9R.724 | 2.0L | 2008 | 2010 |
Renault | Espace | M9R.740 | 2.0L | 2006 | 2008 | |
Renault | Trafic | X83 | M9R.780/6 | 2.0L | 2007 | 2015 |
Renault | Laguna | X91 | M9R.800 | 2.0L | 2008 | 2011 |
Renault | Laguna | X91 | M9R.816 | 2.0L | 2008 | 2010 |
Renault | Latitude | X43 | M9R.817 | 2.0L | 2011 | 2016 |
Renault | Koleos | H45 | M9R.830 | 2.0L | 2008 | 2016 |
Renault | Koleos | H45 | M9R.832 | 2.0L | 2009 | 2013 |
SKU | ET5070 |
Barcode # | 9321280326514 |
Brand | Automotive |
Drive | 1/2" Sq Drv |
Points | 6 Point |
Style | Impact |
Type | Ribe |
Vehicle Make | Renault |
Vehicle Make | Nissan |
Vehicle Make | Holden |
Size | M11 |
Length | 78mm |
Material | S2 Steel |
12 Months
