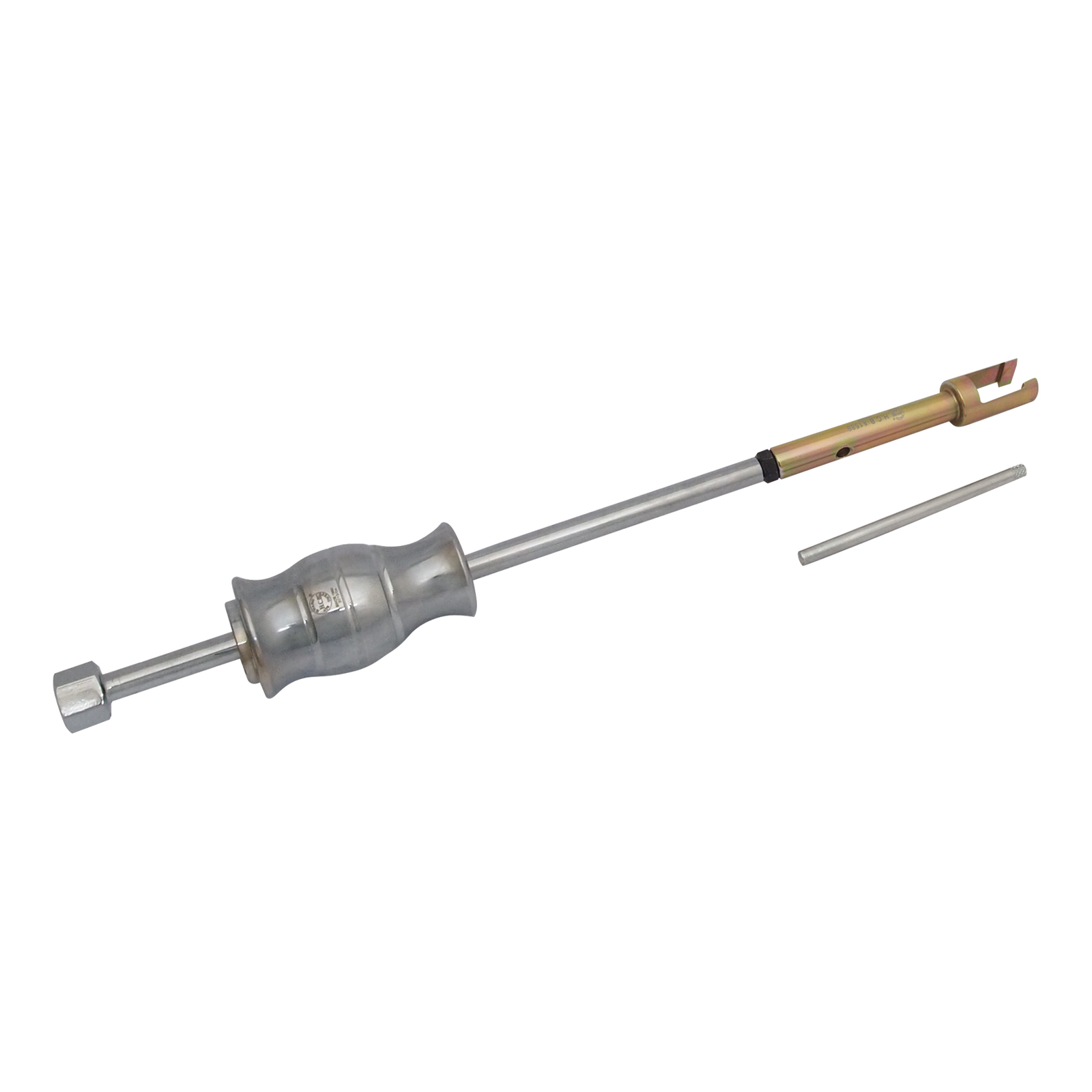

A specialised puller kit designed to remove petrol injectors on Mercedes 1.8L | 1.9L M271 engines (from 2007 onwards) using either the slide hammer included, or a T-bar.
The injector removal tool is designed to slide onto the injector, and then lock into the slots on the side, allowing for extraction.
- Engine: M271 (07>)
- OEM Equiv: 271 589 02 33 00 (271589023300)
Engine Code(s)
M271.820, M271.952, M271.950, M271.860, M271.957, M271.955, M271.861
| Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
| Mercedes | C180 | C204 | M271.820 | 1.8L | 2011 | 2013 |
| Mercedes | C180 | W204 | M271.820 | 1.8L | 2011 | 2013 |
| Mercedes | C180 | S204 | M271.820 | 1.8L | 2011 | 2013 |
| Mercedes | C200 | W204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C200 | S204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C250 | W204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C250 | S204 | M271.860 | 1.8L | 2010 | 2014 |
| Mercedes | C250 | C204 | M271.860 | 1.8L | 2011 | 2016 |
| Mercedes | E200 | W212 | M271.860 | 1.8L | 2012 | 2013 |
| Mercedes | E250 | S212 | M271.860 | 1.8L | 2009 | 2013 |
| Mercedes | E250 | A207 | M271.860 | 1.8L | 2010 | 2013 |
| Mercedes | SLK200 | R172 | M271.861 | 1.8L | 2011 | 2015 |
| Mercedes | SLK250 | R172 | M271.861 | 1.8L | 2012 | |
| Mercedes | C200 | W204 | M271.950 | 1.8L | 2007 | 2010 |
| Mercedes | C200 | S204 | M271.950 | 1.8L | 2008 | 2010 |
| Mercedes | C180 | W204 | M271.952 | 1.8L | 2007 | 2014 |
| Mercedes | CLK200K | A209 | M271.955 | 1.8L | 2007 | 2010 |
| Mercedes | CLK200K | C209 | M271.955 | 1.8L | 2007 | 2010 |
| Mercedes | CLC200 | CL203 | M271.957 | 1.8L | 2008 | 2011 |
271589023300
| SKU | ET1589B |
| Barcode # | 9321280411814 |
| Brand | Automotive |
| Vehicle Make | Mercedes |
12 Months
