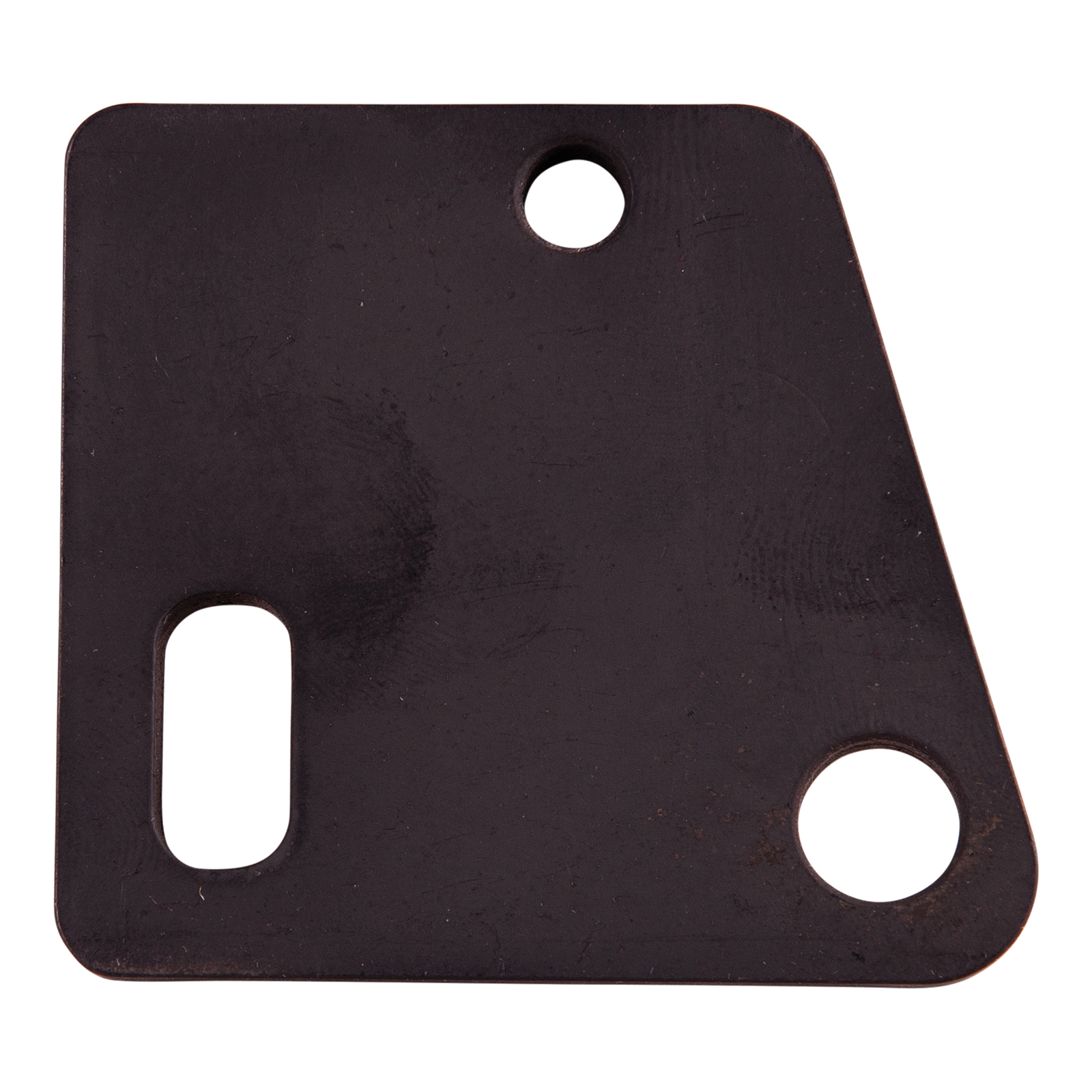

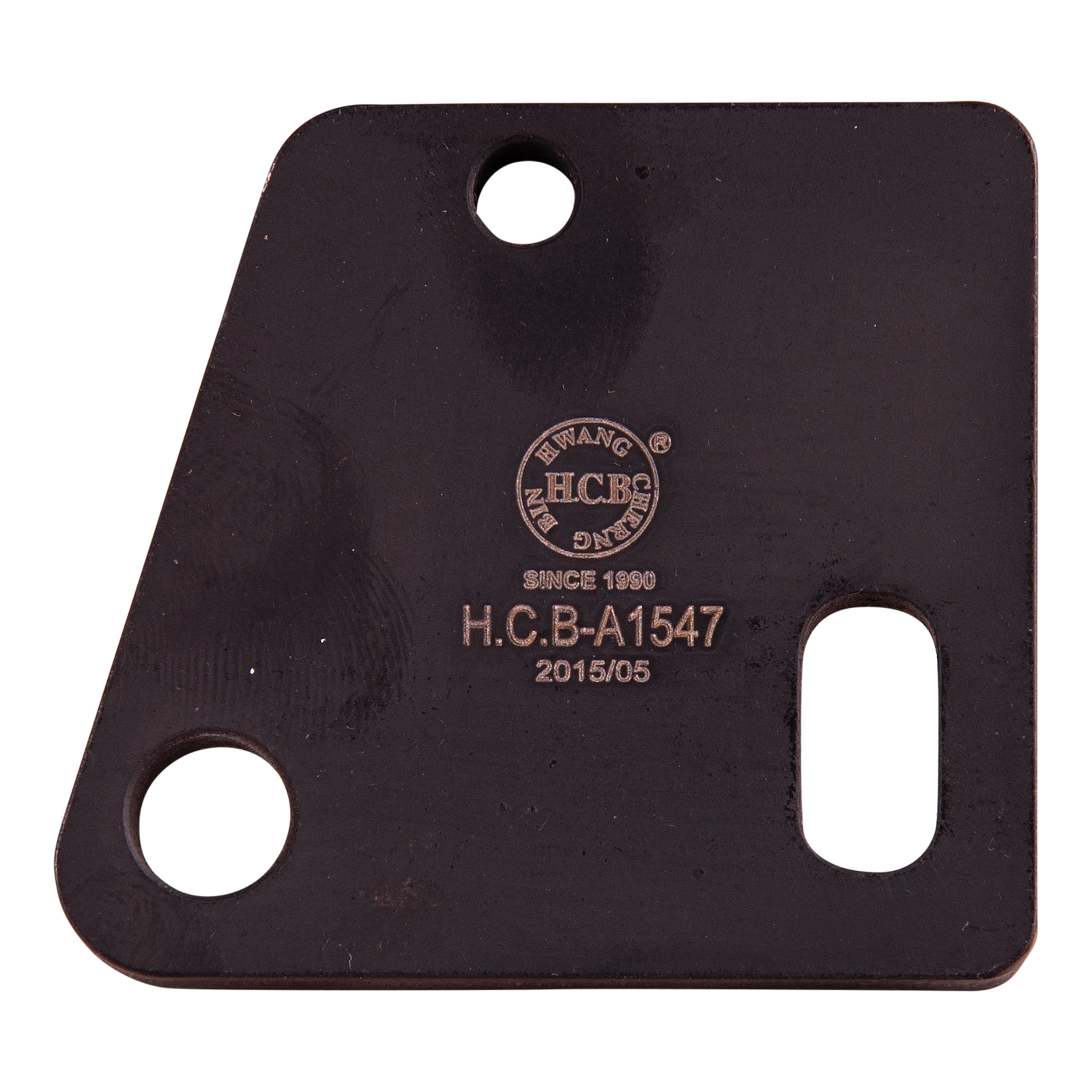

Drive gear wheel adjustment tool for engines with a mechanical vacuum pump. Holds the high pressure vacuum pump drive chain sprocket when adjusting cam / crank timing.
- Engine code: AXZ | BHK | BWS
- OEM Equiv: T10363
Engine Code(s)
BHK, BWS, AXZ, CDVA, CGRA
Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
Volkswagen | Passat | B6 | AXZ | 3.2L | 2006 | 2011 |
Volkswagen | Passat | B7 | AXZ | 3.2L | 2006 | 2011 |
Audi | Q7 | Typ 4L | BHK | 3.6L | 2006 | 2010 |
Volkswagen | Touareg | Typ 7L | BHK | 3.6L | 2006 | 2010 |
Volkswagen | CC | 3C | BWS | 3.6L | 2012 | 2017 |
Volkswagen | Passat | B6 | BWS | 3.6L | 2008 | 2015 |
Volkswagen | Passat | B7 | BWS | 3.6L | 2008 | 2015 |
Volkswagen | Passat | 3C | BWS | 3.6L | 2009 | 2012 |
Skoda | Superb | 3T | CDVA | 3.6L | 2009 | 2015 |
Volkswagen | Tiguan | 7P | CGRA | 3.6L | 2011 | 2012 |
T10363

VAG Timing Kit
A specialised kit for replacing timing chains on Porsche | VAG petrol engines. This kit suits a wide range of 6 | 8 cylinder engines.
- Applications: VW Bora | Eos | Golf Mk IV | Golf Mk V | Passat | Phaeton | Touareg | | Sharan | Transporter T4 | Transporter T5, Audi A3 | A8 | Q7 | S8 | TT, Porsche Cayenne.
- Engines: 2.8L, 3.2L, 3.6L, 4.0L, with 6 & 8 cylinder petrol engines
Engine Code(s)
BHK, BWS, AXZ, CDVA, CGRA
Vehicle Make | Model | Series | Engine Code | Engine Size | Year Start | Year End |
Volkswagen | Passat | B6 | AXZ | 3.2L | 2006 | 2011 |
Volkswagen | Passat | B7 | AXZ | 3.2L | 2006 | 2011 |
Audi | Q7 | Typ 4L | BHK | 3.6L | 2006 | 2010 |
Volkswagen | Touareg | Typ 7L | BHK | 3.6L | 2006 | 2010 |
Volkswagen | CC | 3C | BWS | 3.6L | 2012 | 2017 |
Volkswagen | Passat | B6 | BWS | 3.6L | 2008 | 2015 |
Volkswagen | Passat | B7 | BWS | 3.6L | 2008 | 2015 |
Volkswagen | Passat | 3C | BWS | 3.6L | 2009 | 2012 |
Skoda | Superb | 3T | CDVA | 3.6L | 2009 | 2015 |
Volkswagen | Tiguan | 7P | CGRA | 3.6L | 2011 | 2012 |
SKU | ET1547A |
Barcode # | 9321280360891 |
Brand | Automotive |
Vehicle Make | VAG |
12 Months
