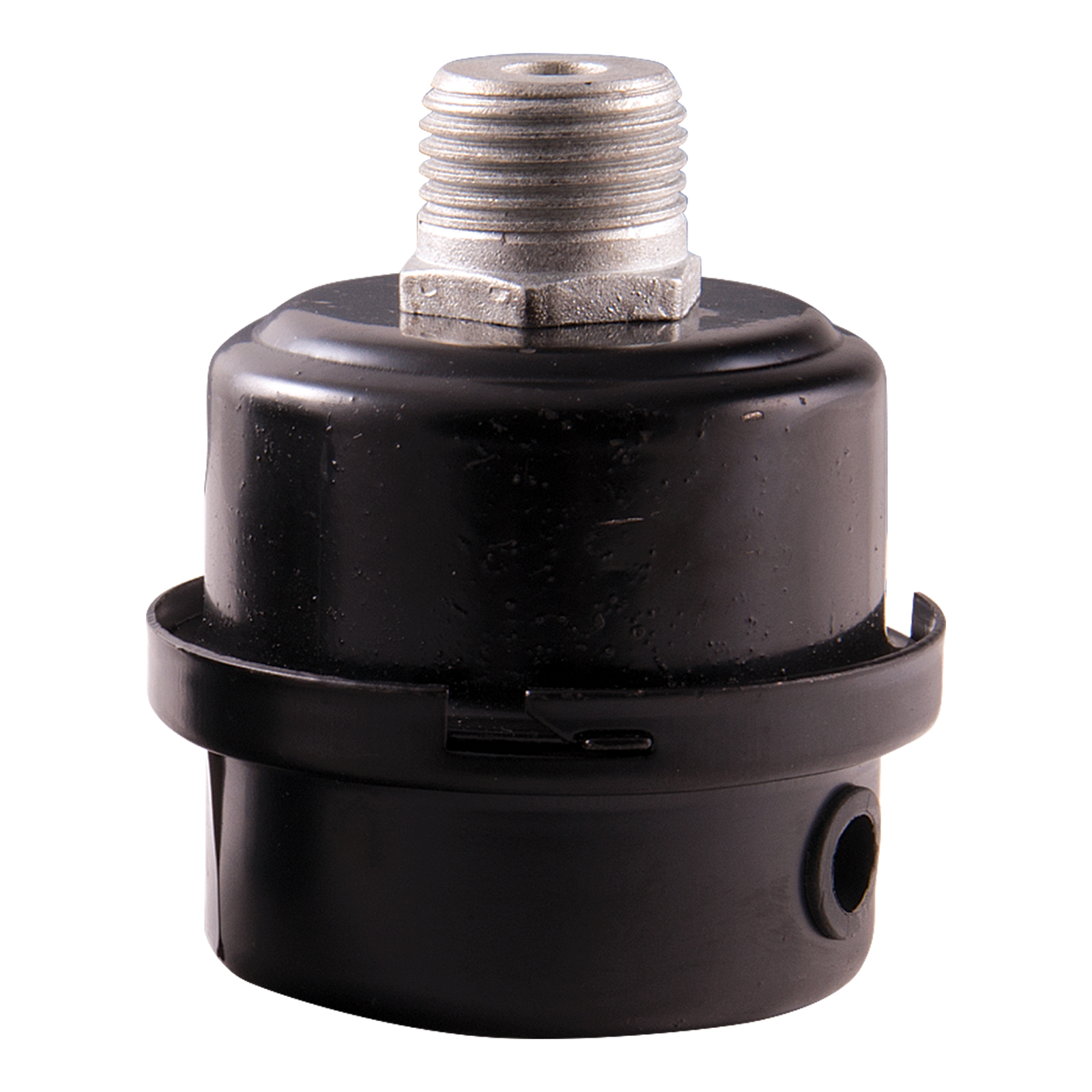

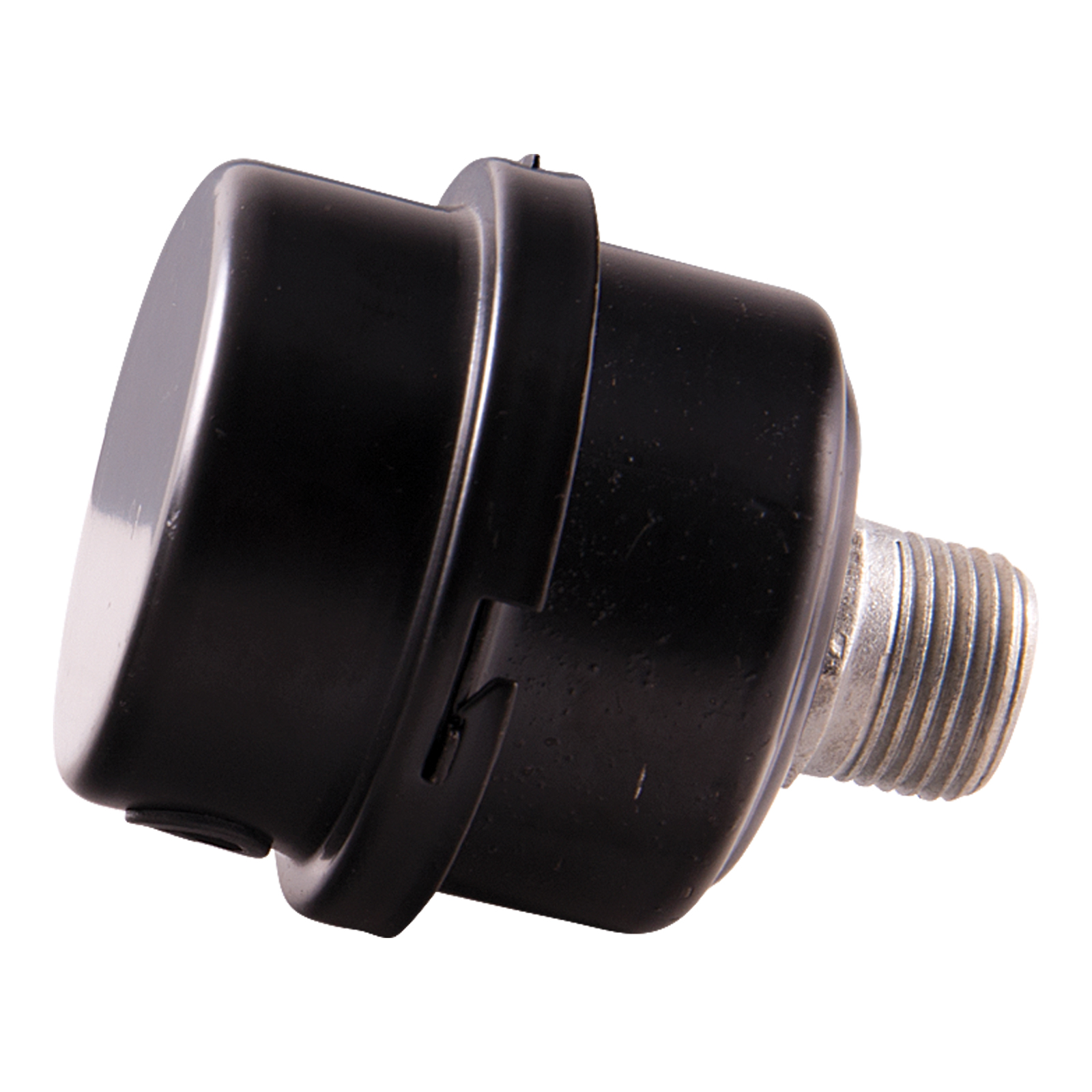

Metal Intake Filter | 1/2" BSP
SKU: 190FAM08
99%+ removal efficiency standard: Paper = 2 micron, Polyester = 5 micron
Ability to mount vertically, horizontally
Durable carbon steel construction with powder coated finish or galvanized steel
Filter change out differential: 10” – 15” in. H2O above initial Delta P
Fully drawn weather hood- no wealds to rust or vibrate apart
Interchangeable elements: Polyester, Paper, HEPA
Patented high grade filter element
Temp (continuous): min -15o F (-26 o C) max 220 o F (104 oC)
Tubular silencing design- tube is positioned to maximize attenuation and air flow while minimizing pressure drop
Typical noise attenuation up to 25 dB’s
| SKU | 190FAM08 |
| Barcode # | 9335111003130 |
| Brand | Sonsbeek |
| Size | 1/2" BSP |
| Type | Intake Filter / Metal |
| Material | Metal |
12 Months
