TECHNICAL

For modern day compressed air couplings, HIGH VOLUME is essential.

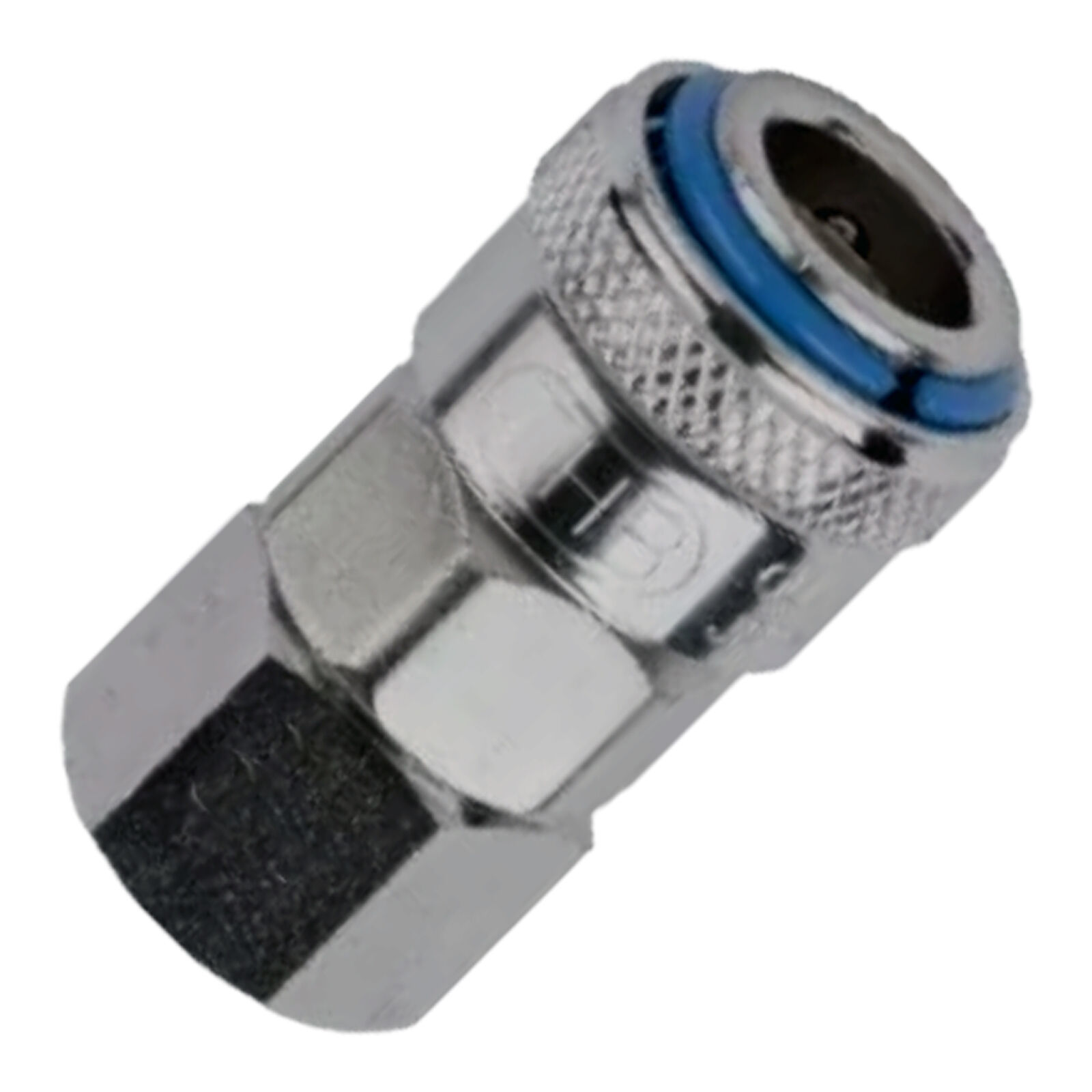

The new 2007 release GENUINE SONSBEEK 400 Series Couplings have been designed for the Industrial market.

Quality and performance.

Precision manufactured components.

Thread sealant applied to all male threads.

Anti corrosive silver Nickel plated

INTERCHANGEABILITY

RECTUS 03 SERIES NITTO KOHKI HI CUPLA,

NITTO KOHKI 200 SERIES,

JAPANESE INTERCHANGE,

J.P H.V. ONE TOUCH SERIES,

CEJN 315 SERIES,

SONSBEEK 413

TDK and many others

ADVANTAGES

One Touch AUTOMATIC Operation means no need to pull back the sleeve to connect .This clever one touch design incorporates a valve that offers high flow rates at more than 60 CFM.

WORKING TEMPERATURE

-10°C up to +80°C—Buna N Seal

OPERATING PRESSURE

Safe working pressure to 250 PSI / 17 BAR

MAINTENANCE

Lubricate occasionally

Not recommended for Dry air applications Refer to the Air breathing section

Do not connect directly to “Impacting” Air Tools Always use a impact absorbing leader hose

APPLICATIONS

Compressed air and pneumatic applications, especially suitable where high flow rates are required.

SPECIAL PRODUCT:

Being one of our most popular ranges it has been imperative to introduce a 400 series SAFETY ADAPTOR to avoid hose whip and to reduce noise at disconnection.

ASK US FOR MORE DETAILS.

BACK BODY      CASE HARDENED STEEL
VALVE BODY    CASE HARDENED STEEL
VALVE                           Brass
SPRING                       AISI 301
BALLS                         AISI 420
SEALS                          Buna N
SLEEVE              CASE HARDENED STEEL

3 way round manifold designed for running multiple outlets. Robust alloy construction. Hi flow design.

• 3 way manifold
• 1/4" NPT connections

5 way straight manifold designed for running multiple outlets. Robust alloy construction. Hi flow design.

• 5 way manifold
• 1/4" NPT connections

A repair kit for the 190NRV90-08CM non return valve.

• Spring
• Viton pad
• Biconic valve
