Non Removeable Security Nuts
Buying Options
| Quantity | Image | Name | Price | List Price: POA |
|---|---|---|---|---|
|
Endeavour M16 Zinc Plated Shearnut
SKU: M16-SHEARNUT-ZP M16
|
POA |

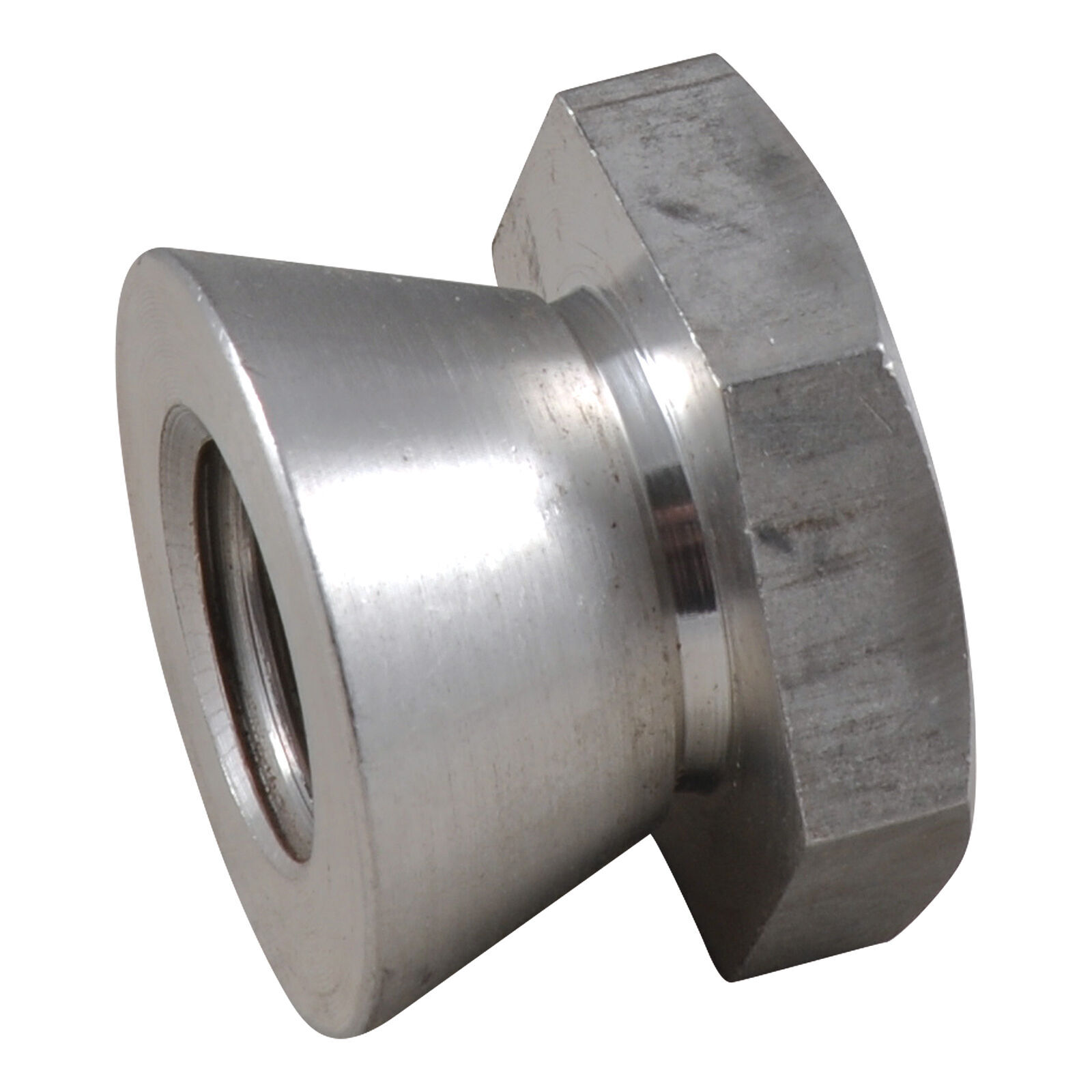

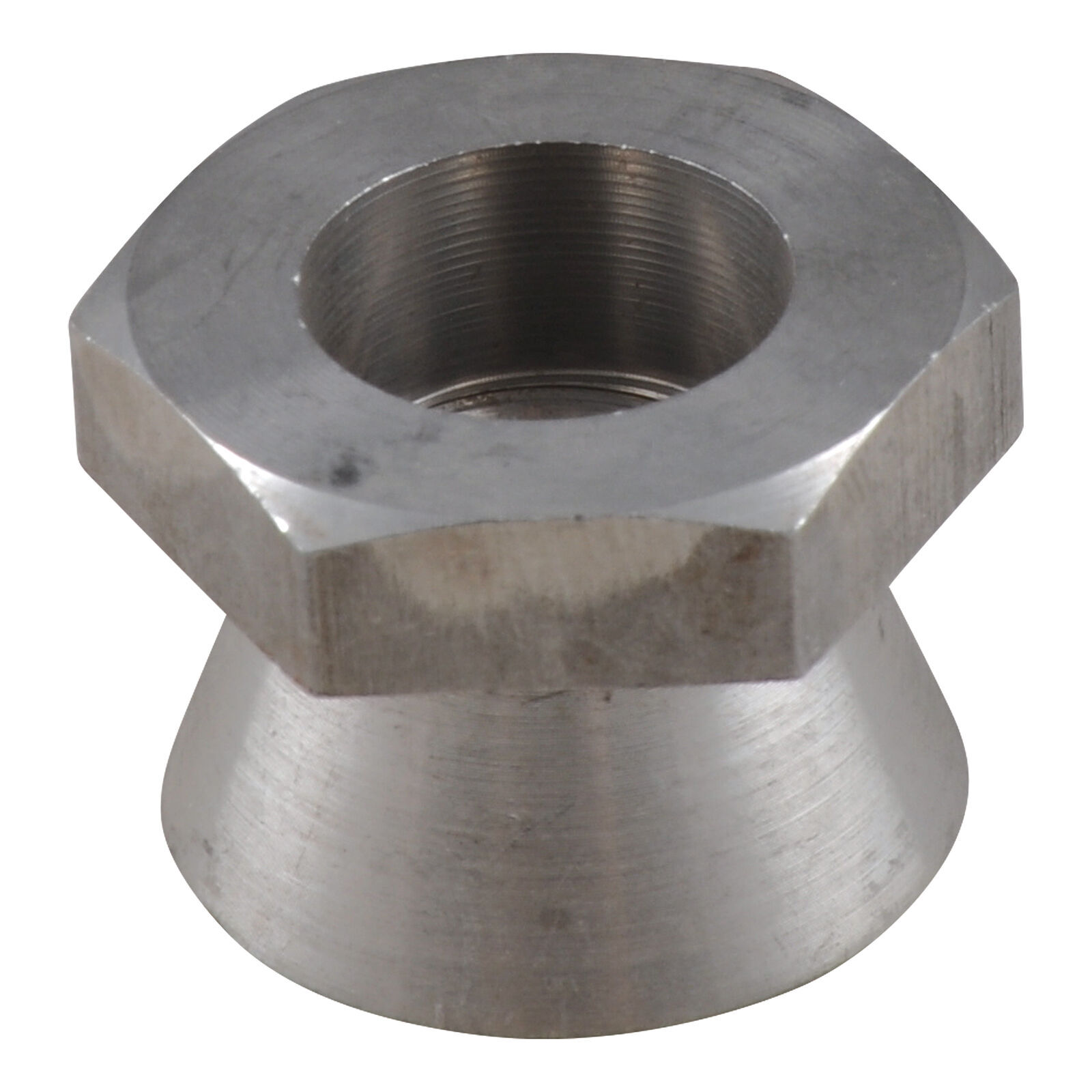

Endeavour shearnuts offer a one way non-removeable security nut solution. The shearnut head is designed to shear leaving a cone nut. The cone nut has sloping sides which are unable to be gripped with pliers, making it a one way security solution.
- Endeavour shearnuts are CNC machined. This is important to guarantee that the shear torque is consistent, and within quoted specifications.
- Cheaper shearnuts are typically forged. These will often shear outside the torque range, or not shear at even torques. This can result either in the nuts shearing too early, or shearing at such high torque that the bolt can snap.
- Endeavour shearnuts have a larger cone design, and the side angles on the cone are less steep than many cheaper options, making them harder to grip with pliers. If the side angle is too steep the cone can often be gripped with pliers facilitating their removal.
| SKU | ZZSZN |
| Barcode # | 9321280391116 |
| Brand | Endeavour |
Consumable
More from this category
Endeavour 1/2" UNC Zinc Plated Shearnut
Endeavour shearnuts offer a one way non-removeable security nut solution. The shearnut head is designed to shear leaving a cone nut. The cone nut has sloping sides which are unable to be gripped with pliers, making it a one way security solution.
- Zinc plated shearnut
- 1/2" UNC
Endeavour 1/4" UNC Zinc Plated Shearnut
Endeavour shearnuts offer a one way non-removeable security nut solution. The shearnut head is designed to shear leaving a cone nut. The cone nut has sloping sides which are unable to be gripped with pliers, making it a one way security solution.
- Zinc plated shearnut
- 1/4" UNC thread
Endeavour 3/8" UNC Zinc Plated Shearnut
Engineered for high-security applications, this CNC machined shearnut is made d from high-grade steel and finished with a corrosion-resistant zinc plating.
Once tightened, the hex portion shears off at a predetermined torque, leaving a smooth, conical surface that cannot be gripped with standard tools.
- Zinc plated shearnut
- 3/8" UNC
Endeavour M10 Zinc Plated Shearnut
- Zinc plated shearnut
- High torque (58-60Nm shear torque)
- M10 thread
Endeavour M12 Zinc Plated Shearnut
- Zinc plated shearnut
- High shear torque: 75Nm
- M12 thread
