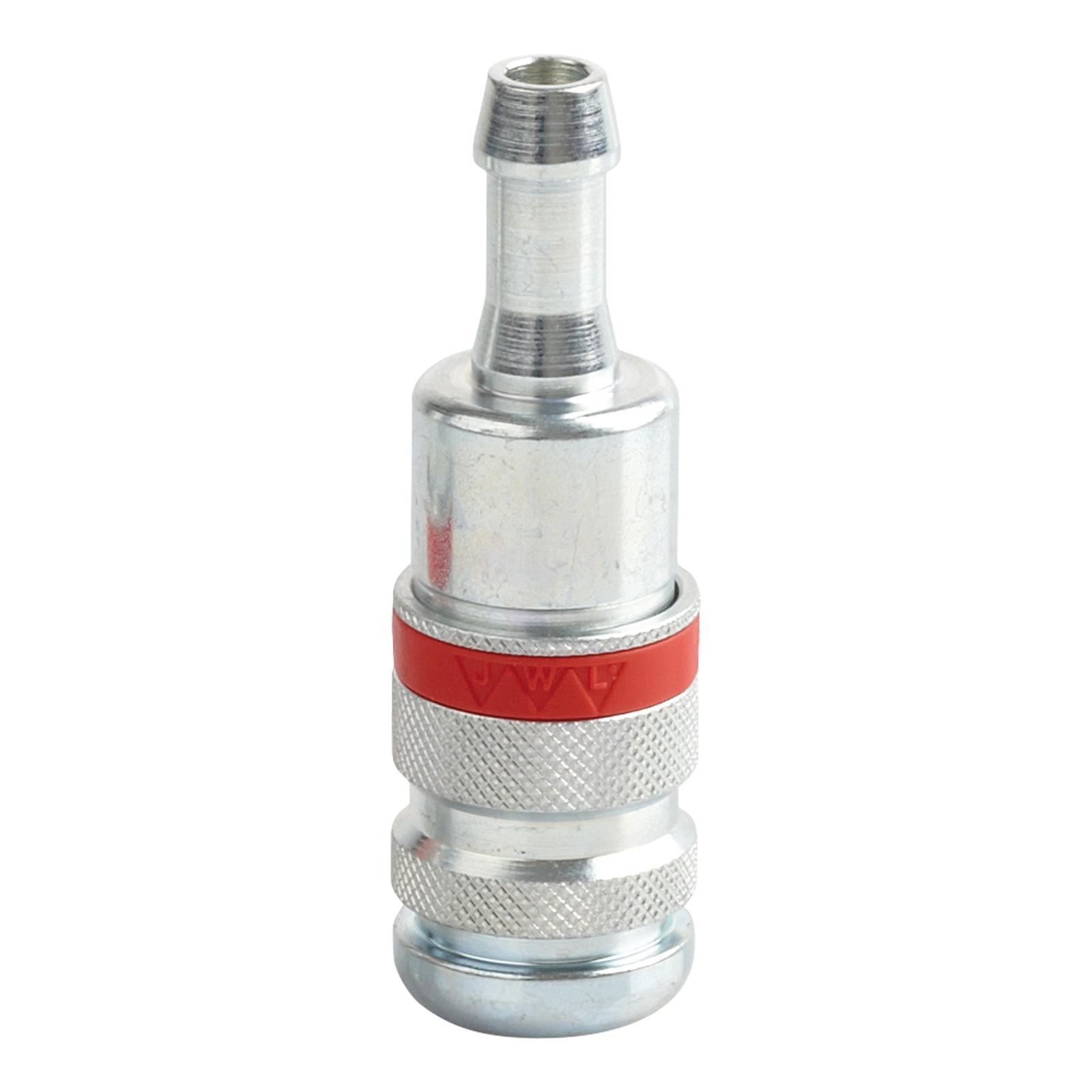

Air Boy air breathing adaptors are made with an optimised safety system that prevents unintended release. They are made in strong and impact resistant materials that together with their safety design ensure a long lasting, user friendly and safe fitting.

The Air Boy 580 series adaptors are compatible with EN 139 / EN 270 standards, and are interchangeable with Cejn 341 / 342 fittings.

TECHNICAL

For modern day compressed air couplings, HIGH VOLUME is essential.

 GENUINE SONSBEEK 525 Series Couplings have been designed for the Industrial market.

 Quality and performance.

 Precision manufactured components.

Thread sealant applied to all male threads.

Anti corrosive silver Nickel plated.

INTERCHANGEABILITY

CEJN 320, RECTUS 25 & 26

RYCO 500, JP EURO 59 series, RECTUS 26KE

ADVANTAGES

One Touch AUTOMATIC Operation means no need to pull back the sleeve to connect. This clever one touch design incorporates a valve design that offers high flow rates at more than 60CFM .

 WORKING TEMPERATURE

-10°C up to +80°C—Buna N Seal

 OPERATING PRESSURE

Safe working pressure to 250 PSI / 17 BAR

MAINTENANCE

Lubricate occasionally.

 Not recommended for Dry air applications Refer to the Air breathing section

 Do not connect directly to “Impacting” Air Tools Always use a impact absorbing leader hose

APPLICATIONS

Compressed air and pneumatic applications, especially suitable where high flow rates are required.

SPECIAL PRODUCT:

Being one of our most popular ranges it has been imperative to introduce a 525 series SAFETY ADAPTOR to avoid hose whip and reduce noise at disconnection.

 ASK US FOR MORE DETAILS

BACK BODY     CASE HARDENED STEEL

VALVE BODY    CASE HARDENED STEEL

SLEEVE             CASE HARDENED STEEL

VALVE                           Brass

SPRING                       AISI 301

BALLS                         AISI 420

SEALS                          Buna N
