Small and Compact

Body is Brass Nickel Plated

Arrow indicates direction of flow

Suitable for industrial, pneumatic and hydraulic installations.

Ideal for hot/cold water, different oils, compressed air and gas.

Thread: BS21- DIN 2999- ISO 7/1 Rp parallel Female/Female

Minimum and maximum working temperature:

• Air: -15^oC,220^oC
• Water: 0^oC, 150^oC Without steam
• Gas: -15^oC, 60^oC

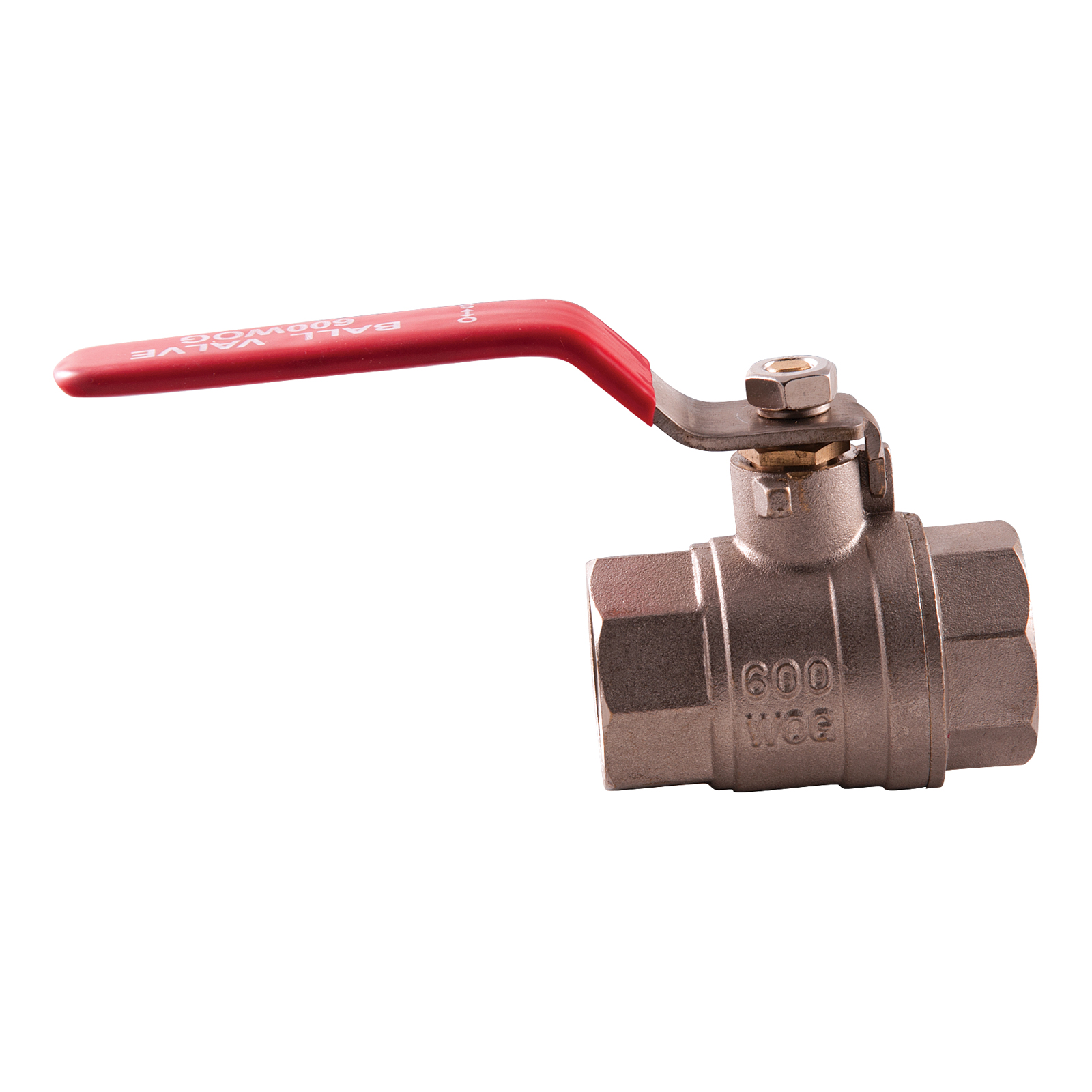

Sonsbeek mini ball vales are available with either female connections, or female / male connections. These are high quality ball valves made in Italy, with a metal body / chrome plated finish. These valves are for use with air / water only.

• Valve body: CW 617N UNI-EN 12164
• Ball gaskets: PTFE - Teflon
• Lever: Glass charged nylon
• Chrome plated body
• Working pressure: 0 - 220 PSI
• Working temperature: 0 - 90 degrees C
• Made in Italy

Sonsbeek mini ball vales are available with male / female connections or female only. These are high quality ball valves made in Italy, with a metal body / chrome plated finish. These valves are for use with air / water only.
