TECHNICAL

For modern day compressed air couplings, HIGH VOLUME is essential.

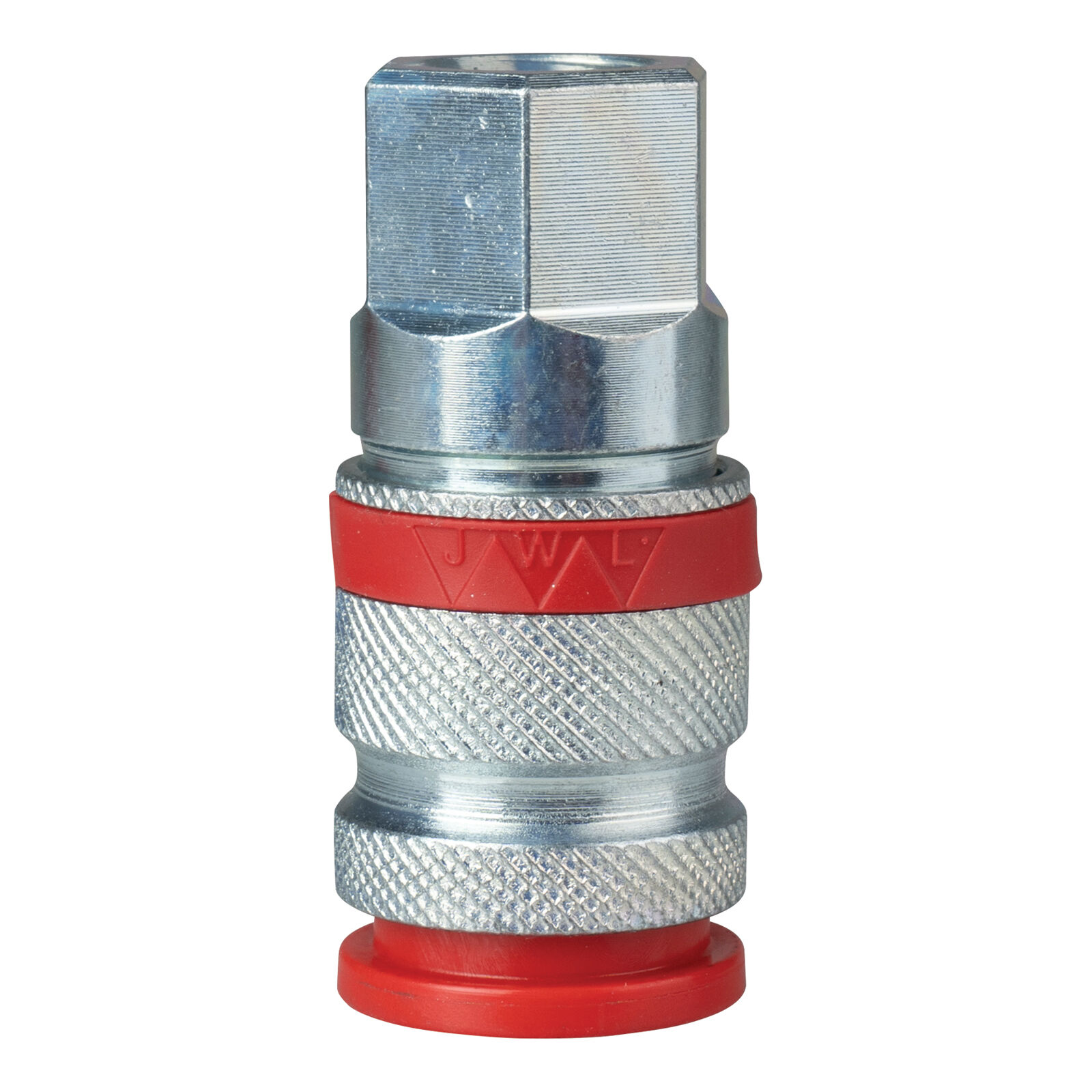

 GENUINE SONSBEEK 525 Series Couplings have been designed for the Industrial market.

 Quality and performance.

 Precision manufactured components.

Thread sealant applied to all male threads.

Anti corrosive silver Nickel plated.

INTERCHANGEABILITY

CEJN 320, RECTUS 25 & 26

RYCO 500, JP EURO 59 series, RECTUS 26KE

ADVANTAGES

One Touch AUTOMATIC Operation means no need to pull back the sleeve to connect. This clever one touch design incorporates a valve design that offers high flow rates at more than 60CFM .

 WORKING TEMPERATURE

-10°C up to +80°C—Buna N Seal

 OPERATING PRESSURE

Safe working pressure to 250 PSI / 17 BAR

MAINTENANCE

Lubricate occasionally.

 Not recommended for Dry air applications Refer to the Air breathing section

 Do not connect directly to “Impacting” Air Tools Always use a impact absorbing leader hose

APPLICATIONS

Compressed air and pneumatic applications, especially suitable where high flow rates are required.

SPECIAL PRODUCT:

Being one of our most popular ranges it has been imperative to introduce a 525 series SAFETY ADAPTOR to avoid hose whip and reduce noise at disconnection.

 ASK US FOR MORE DETAILS

BACK BODY     CASE HARDENED STEEL

VALVE BODY    CASE HARDENED STEEL

SLEEVE             CASE HARDENED STEEL

VALVE                           Brass

SPRING                       AISI 301

BALLS                         AISI 420

SEALS                          Buna N

OE level functionality for Heavy Duty Truck, Agricultural & Industrial applications.

• Heavy, Medium & Light Duty truck coverage for all major Australia / Asian / European / US manufacturers, including Volvo & Iveco
• J1939 / J1708 and OBDII Protocols covered
• Agriculture / Industrial coverage includes Caterpillar, John Deere, Komatsu.
• Full Mercedes Sprinter coverage
• Perform DPF Regeneration; NOX Resets, Injector Programming, Change and Set Parameters, along with SCR/DEF coverage and full bi-directional controls covering over 60 manufacturers.
• Easy updates via WiFi
• IP65 rating | water resistant
• Remote diagnostics via TeamViewer
• Powerful 1.8GHz quadcore processor
• Includes: Multiple connectors, docking station
• Local Australian support
• Global coverage
• Bus, Commercial, Agriculture, Off Highway
• Free initial remote training consultation post purchase
• Australian based technical support only a phone call away
• We regularly test local Australian vehicles for any updates required
• Regular updates & bug fixes (rather than waiting for bi yearly fixes)
• 2 years free updates for all vehicle categories (a $2,800 value)
• No lock out once updates expire
• 4G Sim Card enabled
• Light Commercial now includes: Toyota Hilux / Landcruiser, Ford Ranger, Nissan Navara / Patrol, Isuzu D-Max, Holden Colorado

Coverage from Commercial to and including DPF regeneration

Testing brake fluid boiling point is widely regarded as the most accurate method of testing brake fluid moisture levels.

This compact unit tests DOT3 | DOT4 | DOT5 | DOT5.1.

• LCD display provides step by step instructions
• Accurate results displayed in less than sixty seconds.
• Operates on 12V supply, using vehicle's battery

This airline adaptor is designed to enable quick, secure connection between standard compressed air lines and CEJN style Euro profile quick connect couplers.

• CEJN (Euro) style adaptor
• Hardened steel
• 1/4" Tail

Air Boy airline fittings are made in Denmark for professional applications. These Euro couplers are compatible with Cejn couplers.

• Steel housing with stainless spring wire
• Euro style
• 3/8" BSP female

• Euro style
• 3/8" tail coupler

Air Boy Euro couplers are industrial grade quality, made in Denmark. Extra durable, light weight, with an optimised valve system that minimises turbulence and ensures optimal airflow.

• Steel housing with stainless spring wire
• Euro style
• 5/16" Hose

Air Boy Euro couplers are industrial grade quality, made in Denmark. Extra durable, light weight, with an optimised valve system that minimises turbulence and ensures optimal airflow.

• Steel housing with stainless spring wire
• Euro style
• 1/2" BSP male

Air Boy Euro couplers are industrial grade quality, made in Denmark. Extra durable, light weight, with an optimised valve system that minimises turbulence and ensures optimal airflow.

• Steel housing with stainless spring wire
• Euro style
• 1/4" BSP male
